Optiled Array MX2 800 LED AR111 12,5W 927 2700K 350mA (36V) G53 45° dimbaar toepassen met 350mA LEDdriver zie accessoires, niet op 12V of 36V !
Properties
Accessories
Downloads
Your corrections
| Manufacturer's article number | 1151271718-A | ? Manufacturer's part number. |
| Beam angle | 45° |
?
The wider the light beam, the larger the illuminated surface. Brightness decreases as the beam widens, since the light is divided over a larger area. For creating high contrasts it is therefore recommended to apply smaller light beams. However, contrasts that are too high can be distracting and can cause adjustment problems for the eye, which can be tiring. On the other hand, too little contrast creates a dull and flat impression. |
| Brand | Optiled | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Colour code | 927 |
?
Light colour is often represented with a 3 digit number. The first digit indicates the CRI (Colour Rendering Index) or CRI Ra value: 5 = 50-59 6 = 60-69 7 = 70-79 8 = 80-89 9 = 90-99 The last 2 digits are for colour temperature. The higher the colour temperature, the cooler the impression of light. Warm white creates a cosy, welcoming atmosphere. Neutral cool-white creates a more businesslike atmosphere. Low lighting levels in interior must be obtained with warm-white light. If a very high level of light is needed, this must be achieved with neutral or cool white light. 2700K extra warm white 3000K warm white 3500K neutral white 4000K cool white 5000-5500K daylight 6000K cool daylight |
| Colour rendering index Ra | >90 |
?
Light sources can be classified on the basis of their colour rendering properties. The unit for colour rendering is called CRI (Colour Rendering Index, or CRI Ra value). The scale of the Ra is from 50 to 100. Ra = 90-100 excellent colour rendering properties Ra = 80-90 good colour rendering properties Ra = 60-80 moderate colour rendering properties Ra <60 poor colour rendering properties Fluorescent and PL lamps with an equal power, the luminous flux of Ra 90-100 tubes is typically 20% lower. |
| Colour temperature | 2700K |
?
Colour temperature is expressed in kelvin (K). The higher the colour temperature, the cooler the impression of the light: 2700K: extra warm white
Extra warm white creates a warm, inviting atmosphere (e.g. hotel, living room, and catering). Warm white can be used for a pleasant atmosphere (e.g. retail and office). Neutral cool white creates a more businesslike atmosphere, this color gives a sterile atmosphere.
|
| Constant current | 350mA | ? For constant current drive LED's are connected in series. The driver must be able to provide the appropriate current. |
| Diameter | 111mm | ? Diameter in millimetres, measured at the widest point. |
| Dim to warm | No |
?
Dim to warm is a dimming technique that adjusts colour temperature as the light is dimmed: it shifts from warm white to extra warm white when fully dimmed. This technique has various names, such as Dimtone or Glowdim. |
| Dimmable | Yes | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |
| Lamp base | G53 | ? Cap, lamp holder or lamp base type. |
| Luminous flux | 800lm | ? The amount of light transmitted by the light source per second. The unit of luminous flux is the lumen (lm). |
| Pieces per outer carton | 30 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Wattage | 12,5W | ? The power that the bulb consumes. This does not include the loss of any ballast or transformer. |
| Wattage equivalent | 75W | ? Replacement bulb power specified by the manufacturer. A CFL and LED display average 5x as much light compared to a standard bulb. To the CFL or LED power available divide the bulb power by 5. |
| EAN code | 4895115236903 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
| EAN code (extra) | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |

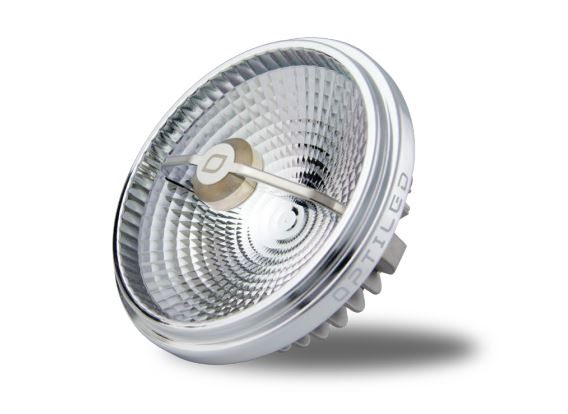

Optiled Array MX2 800 LED AR111 12,5W 927 2700K 350mA (36V) G53 45° dimbaar
toepassen met 350mA LEDdriver zie accessoires, niet op 12V of 36V !
toepassen met 350mA LEDdriver zie accessoires, niet op 12V of 36V !
Download productinformatieblad
