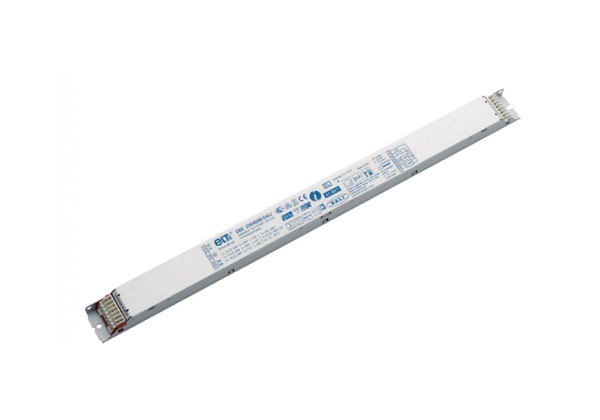

ELT 9624063 DBE 218 198-264V evsa dim DALI
Properties
Downloads
Your corrections
| Manufacturer's article number | 9624063 | ? Manufacturer's part number. |
| Ballast | Electronic | ? A conventional ballast has a wound coil. It is somewhat cheaper to buy, but more expensive to run because more power is converted into heat. An electronic ballast not only has a lower power consumption, but it also has the advantage of longer lamp life. |
| Ballast version | Built-in ballast without strain relief |
?
Version of the ballast. |
| Brand | ELT | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Dimmable | Dali, Pushbutton | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |
| Dimming range | 1-100% | ? Not every dimmable ballast or light source can dim to 0% level, here is the dimming range. |

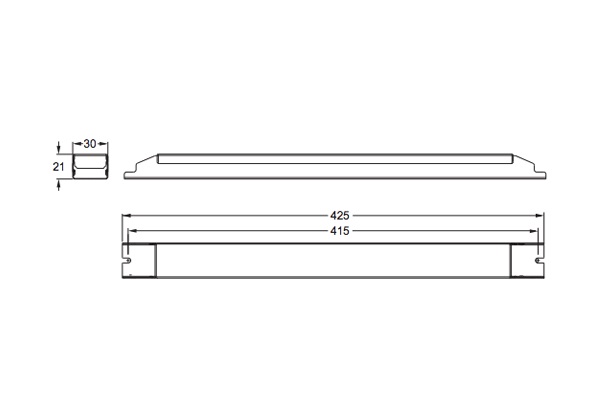

| Height | 21mm | ? Maximum height in millimetres. |
| Length | 425mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Material | Metal | ? Material of which the major part of the product is made. |
| Pieces per outer carton | 20 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Shape | Oblong | ? Product shape. |
| Start type | Warm start >5x switch a day |
?
Ballasts come in a cold and warm start. Cold start is slightly more energy efficient but has the disadvantage that it only up to 3x per day may change, otherwise it is defective. Warm start is today the most widely used. |
| Suitable for PL-L 4p | 2x18W |
?
Suitable for PL-L 4, L Dulux, Biax L, Lynx CF-L lamps. You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for TL 26mm | 2x18W | ? Suitable for TL-D, L Lumilux, T8 Polylux, Luxline T8 fluorescent tubes. You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Temperature range | +10° to 50° C | ? If applied outside the specified temperature range, the components will not function properly. |
| Voltage | 198V-264V | ? This may be either a fixed voltage or two values, in which case the product can be used within these limits. |
| Width | 30mm | ? Maximum width in millimetres. |
| EAN code | 8435110488004 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
| EAN code (extra) | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
ELT 9624063 DBE 218 198-264V evsa dim DALI
Download productinformatieblad
