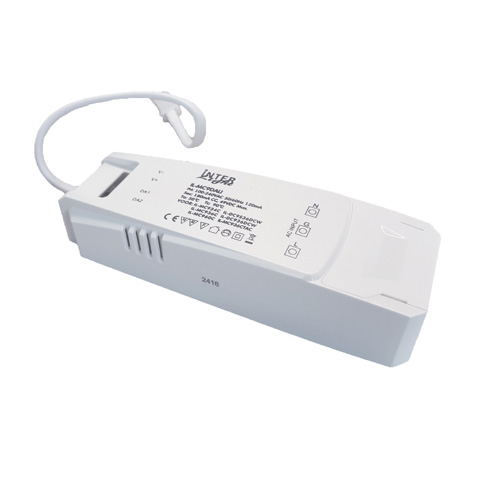

Interlight IL-MC9DALI Camita LED driver 180mA DALI dimbaar niet in combinatie met KNX gebruiken
Properties
Downloads
Your corrections
| Manufacturer's article number | IL-MC9DALI | ? Manufacturer's part number. |
| Ballast | LED Converter | ? A conventional ballast has a wound coil. It is somewhat cheaper to buy, but more expensive to run because more power is converted into heat. An electronic ballast not only has a lower power consumption, but it also has the advantage of longer lamp life. |
| Ballast version | Surface-mounted with strain relief |
?
Version of the ballast. |
| Brand | Interlight | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Dimmable | DALI, Pushbutton | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |
| Height | 30mm | ? Maximum height in millimetres. |
| Input voltage | 230V |
?
This may be a fixed voltage or two values with a hyphen. You can use the product within these limits. |
| Length | 150mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Maximum wattage | 9W | ? Maximum amount of power, expressed in watts, that can be connected to the transformer in order to work properly. If the assets exceed this maximum amount, the transformer may behave abnormally: known phenomena in electronic transformers are the lights switching on and off, and no output voltage. |
| Ouput current | 180mA | ? Each type of LED requires a different driver. Current-controlled LEDs of 350, 700, 1050 and 1400mA need to be connected in series. This can be easily done with an LED distributor. Unused outputs are shorted with a wire . First connect the wires, then you can put power on! Never disconnect wires under power! |
| Pieces per outer carton | 1 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Power factor | >0,9 | ? Power factor is the ratio between net power and apparent power. The PF is the value that indicates how efficiently electrical power is delivered to the consumer. Ideally, the PF is equal to 1. Anything below 1 means that additional power is required to deliver the desired power to the consumer. |
| Shape | Rectangular | ? Product shape. |
| Width | 46mm | ? Maximum width in millimetres. |
| EAN code | 8717438669229 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
| EAN code (extra) | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
Interlight IL-MC9DALI Camita LED driver 180mA DALI dimbaar
niet in combinatie met KNX gebruiken
niet in combinatie met KNX gebruiken
Download productinformatieblad
