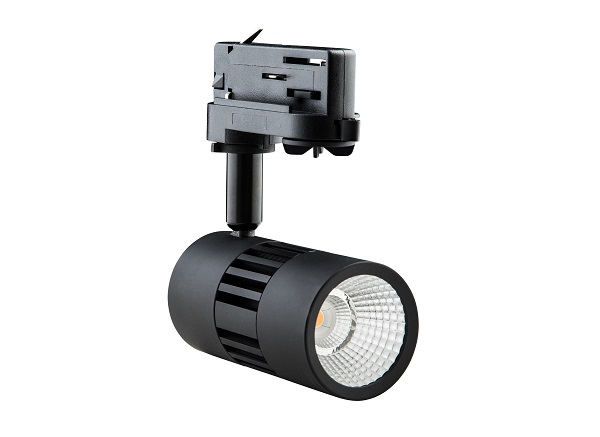

Interlight IL-TR7K3CD LED spot ColourPunch dimbaar met 3f railadaptor 7,5W 930 36° zwart LED railstraler lichtkleur 930 CRI >90 met universele 3f railadaptor en 36° reflector
| Manufacturer's article number | IL-TR7K3CD | ? Manufacturer's part number. |
| Average life span | 50000h | ? The life span of a party of lamps of which 50% of the lamps will continue to function. Sometimes, incandescent or halogen lamps may become defective more quickly, but in case 50% of the lamps do still reach the lifespan, the lamps are still OK. |
| Ballast | LED Converter | ? A conventional ballast has a wound coil. It is somewhat cheaper to buy, but more expensive to run because more power is converted into heat. An electronic ballast not only has a lower power consumption, but it also has the advantage of longer lamp life. |
| Base version | 3 phase universal adapter |
?
The foot may have been different versions. The 1 circuit track adapter is brand specific. The 3 phase track adapter is universal and applicable to most brands rail. |
| Beam angle | 36° |
?
The wider the light beam, the larger the illuminated surface. Brightness decreases as the beam widens, since the light is divided over a larger area. For creating high contrasts it is therefore recommended to apply smaller light beams. However, contrasts that are too high can be distracting and can cause adjustment problems for the eye, which can be tiring. On the other hand, too little contrast creates a dull and flat impression. |
| Brand | Interlight | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Colour | Black | ? Most common colour in the product. |
| Colour code | 930 |
?
Light colour is often represented with a 3 digit number. The first digit indicates the CRI (Colour Rendering Index) or CRI Ra value: 5 = 50-59 6 = 60-69 7 = 70-79 8 = 80-89 9 = 90-99 The last 2 digits are for colour temperature. The higher the colour temperature, the cooler the impression of light. Warm white creates a cosy, welcoming atmosphere. Neutral cool-white creates a more businesslike atmosphere. Low lighting levels in interior must be obtained with warm-white light. If a very high level of light is needed, this must be achieved with neutral or cool white light. 2700K extra warm white 3000K warm white 3500K neutral white 4000K cool white 5000-5500K daylight 6000K cool daylight |
| Colour rendering index Ra | 90 |
?
Light sources can be classified on the basis of their colour rendering properties. The unit for colour rendering is called CRI (Colour Rendering Index, or CRI Ra value). The scale of the Ra is from 50 to 100. Ra = 90-100 excellent colour rendering properties Ra = 80-90 good colour rendering properties Ra = 60-80 moderate colour rendering properties Ra <60 poor colour rendering properties Fluorescent and PL lamps with an equal power, the luminous flux of Ra 90-100 tubes is typically 20% lower. |
| Colour temperature | 3000K |
?
Colour temperature is expressed in kelvin (K). The higher the colour temperature, the cooler the impression of the light: 2700K: extra warm white
Extra warm white creates a warm, inviting atmosphere (e.g. hotel, living room, and catering). Warm white can be used for a pleasant atmosphere (e.g. retail and office). Neutral cool white creates a more businesslike atmosphere, this color gives a sterile atmosphere.
|
| Dimmable | Yes | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |
| IP protection degree | IP20 |
?
The IP (Ingress Protection) code indicates the degree of protection
against ingress of
moisture and
solid objects. The code consists of two firures.
The second figure indicats the protection against water: |
| Lamp included | Yes | ? Luminaire including or excluding lamp(s). |

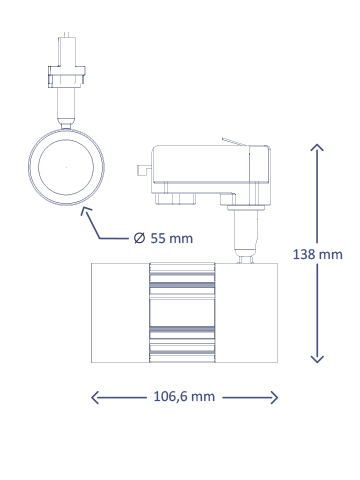

| Length | 106,6mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Light source | LED | ? Type of lamp that fits in the luminaire. In some cases, several types of lamps can be used in one luminaire. |
| Luminaire application | Indoor | ? Application of the luminaire depending on the environment. For example, an indoor fitting cannot be used outdoors. An outdoor luminaire, on the other hand, could be used indoors, but may be less suitable here, fore example because it provides too much light or is aesthetically unsuitable. |
| Luminaire type | Track 230V 3 phase | ? Type of luminaire application. |
| Luminous flux | 536lm | ? The amount of light transmitted by the light source per second. The unit of luminous flux is the lumen (lm). |
| Luminous intensity | 1279cd | ? The light flux that is emitted in a certain direction. The unit of luminous intensity is the candela (cd). |
| Outside dimensions | Ø55mm | ? Outside Dimension is the largest size, often of the lamp head. |
| Pieces per outer carton | 1 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Power factor | 0,92 | ? Power factor is the ratio between net power and apparent power. The PF is the value that indicates how efficiently electrical power is delivered to the consumer. Ideally, the PF is equal to 1. Anything below 1 means that additional power is required to deliver the desired power to the consumer. |
| Premium white | No | ? Premium White gives the best possible light quality for fashion shops and supermarkets. |
| Suitable for number of lamps | 1 | ? The number of lights that the luminaire can contain. Most luminaires are supplied without lamps. If lamps are included can be found in filter property Lamp included. |
| Voltage | 230V | ? This may be either a fixed voltage or two values, in which case the product can be used within these limits. |
| Wattage | 7,5W | ? The power that the bulb consumes. This does not include the loss of any ballast or transformer. |
| EAN code | 8719214374235 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
| EAN code (extra) | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
LED railstraler lichtkleur 930 CRI >90 met universele 3f railadaptor en 36° reflector
Download PDF/Interlight IL-TR7K3CD dimmerlist.pdf
