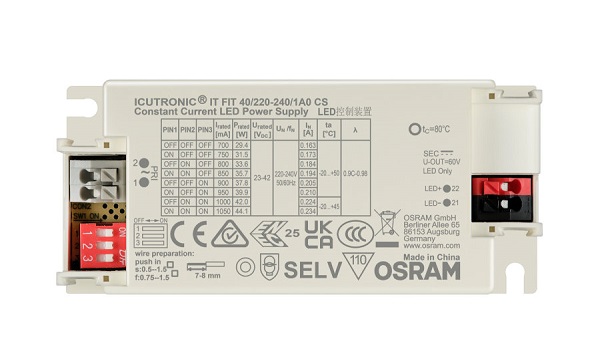

Osram IT FIT 40/220…240/1A0 CS LEDdriver 700-1050mA inbouwmodel niet di

Manufacturer's article number	326384	? Manufacturer's part number.
Ballast	LED Converter	? A conventional ballast has a wound coil. It is somewhat cheaper to buy, but more expensive to run because more power is converted into heat. An electronic ballast not only has a lower power consumption, but it also has the advantage of longer lamp life.
Ballast version	Built-in ballast without strain relief	? Version of the ballast.
Brand	Osram	? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary.
Dimmable	No	? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department.
Height	29,5mm	? Maximum height in millimetres.
Input voltage	220V-240V	? This may be a fixed voltage or two values with a hyphen. You can use the product within these limits.
IP protection degree	IP20	? The IP (Ingress Protection) code indicates the degree of protection against ingress of moisture and solid objects. The code consists of two firures. The first figure indicates the protection against objects and dust: IP 0x - not protected IP 1x - protected against objects with a diameter above 50 mm IP 2x - protected from objects with a diameter greater than 12 mm (touch safe) IP 3x - protected from objects with a diameter greater than 2.5 mm IP 4x - protected against objects with a diameter greater than 1 mm IP 5x - protected against dust ( dust ) IP 6x - dustproof The second figure indicats the protection against water: IP x0 - unprotected (plain) IP x1 - Protected against dripping water (drip) IP x2 - Protected against dripping water when tilted to 15 degrees IP x3 - protected against spraying water (rain tight) IP x4 - protected against splashing water (splash proof) IP x5 - protected against water jets (splashproof) IP x6 - protected from rainstorms IP x7 - protected against accidental immersion (30 minutes to 1 meter deep) (waterproof) IP x8 - protected from stay under water (pressure proof)
Length	97mm	? Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated.
Ouput current	700mA, 750mA, 800mA, 850mA, 900mA, 950mA, 1000mA, 1050mA	? Each type of LED requires a different driver. Current-controlled LEDs of 350, 700, 1050 and 1400mA need to be connected in series. This can be easily done with an LED distributor. Unused outputs are shorted with a wire . First connect the wires, then you can put power on! Never disconnect wires under power!
Pieces per outer carton	50	? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount.
Shape	Rectangular	? Product shape.
Width	43mm	? Maximum width in millimetres.
EAN code	4062172326384	? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing.
EAN code (extra)	4062172326391	? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing.

Osram IT FIT 40/220…240/1A0 CS LEDdriver 700-1050mA inbouwmodel niet dimbaar
dmv dipswitch intern instelbaar voor verschillende stromen. LED stroomsturing 700mA 16,1-29,4W, 750mA 17,3-31,5W, 800mA 18,8-33,6W, 850mA 19,6W, 900mA 20,7-37,8W, 950mA 21,9-39,9W, 1000mA 23-40W, 1050mA 24,2-44,1W

Download productinformatieblad
