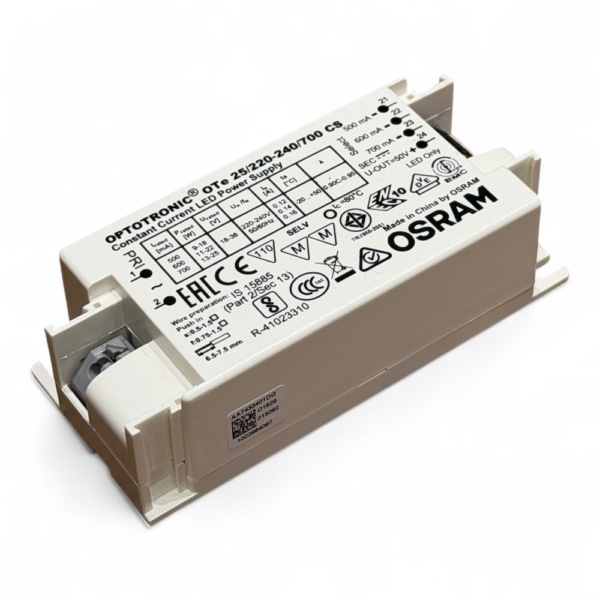

Osram Optronic OTe 25/220-240/ 700 CS inbouw niet dimbaar
Properties
Alternative items
Downloads
Your corrections
| Manufacturer's article number | 917545 | ? Manufacturer's part number. |
| Ballast version | Built-in ballast without strain relief |
?
Version of the ballast. |
| Brand | Osram | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Dimmable | No | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |
| Height | 29,5mm | ? Maximum height in millimetres. |
| Input voltage | 220V-240V |
?
This may be a fixed voltage or two values with a hyphen. You can use the product within these limits. |
| Length | 97mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Ouput current | 500mA, 600mA, 700mA | ? Each type of LED requires a different driver. Current-controlled LEDs of 350, 700, 1050 and 1400mA need to be connected in series. This can be easily done with an LED distributor. Unused outputs are shorted with a wire . First connect the wires, then you can put power on! Never disconnect wires under power! |
| Pieces per outer carton | 20 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Width | 43mm | ? Maximum width in millimetres. |
| EAN code | 4052899917545 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
| EAN code (extra) | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
Osram Optronic OTe 25/220-240/ 700 CS inbouw niet dimbaar
500mA 9-18W, 600mA 11-22W, 700mA 13-25W
500mA 9-18W, 600mA 11-22W, 700mA 13-25W
Download productinformatieblad
