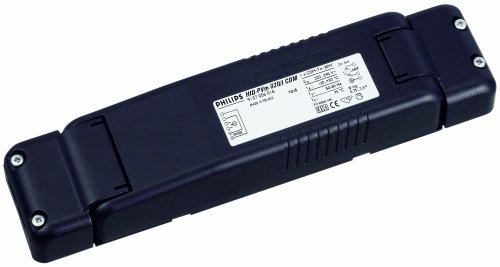

Philips HID-PV m CDM-Tm 20W/I EVSA met trekontlasting
Properties
Downloads
Your corrections
| Manufacturer's article number | 91236730 | ? Manufacturer's part number. |
| Ballast | Electronic | ? A conventional ballast has a wound coil. It is somewhat cheaper to buy, but more expensive to run because more power is converted into heat. An electronic ballast not only has a lower power consumption, but it also has the advantage of longer lamp life. |
| Ballast version | Surface-mounted with strain relief |
?
Version of the ballast. |
| Brand | Philips | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Dimmable | No | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |
| Height | 30mm | ? Maximum height in millimetres. |
| Ignition voltage | 1,5kV | ? Ignition voltage of the ballast or lamp in kV. |
| Length | 190mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Pieces per outer carton | 1 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Suitable for CDM-R mini MR16 | 1x20W |
?
Note Philips has an ignition voltage of 1.5 kV, General Electric and Sylvania 4kV, therefore these are not interchangeable. You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for CDM-Tm Mini PGJ5 | 1x20W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Voltage | 230V | ? This may be either a fixed voltage or two values, in which case the product can be used within these limits. |
| Width | 43mm | ? Maximum width in millimetres. |
Philips HID-PV m CDM-Tm 20W/I EVSA met trekontlasting
Download productinformatieblad
