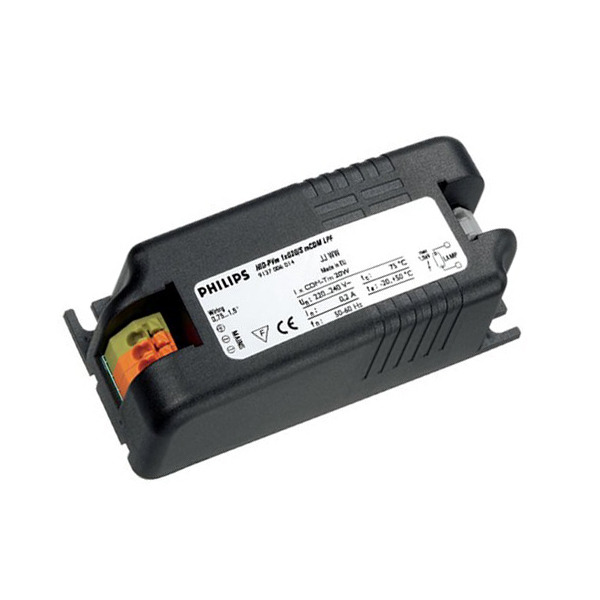

Philips HID-PV m CDM-Tm PGj5 20W/S HPF EVSA inbouw 9137 006 567
Properties
Downloads
Your corrections
| Manufacturer's article number | 77128200 | ? Manufacturer's part number. |
| Average life span | 40000h | ? The life span of a party of lamps of which 50% of the lamps will continue to function. Sometimes, incandescent or halogen lamps may become defective more quickly, but in case 50% of the lamps do still reach the lifespan, the lamps are still OK. |
| Ballast | Electronic | ? A conventional ballast has a wound coil. It is somewhat cheaper to buy, but more expensive to run because more power is converted into heat. An electronic ballast not only has a lower power consumption, but it also has the advantage of longer lamp life. |
| Ballast version | Built-in ballast without strain relief |
?
Version of the ballast. |
| Brand | Philips | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Dimmable | No | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |
| Height | 32mm | ? Maximum height in millimetres. |
| Ignition voltage | 2,0kV | ? Ignition voltage of the ballast or lamp in kV. |
| Length | 98mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Pieces per outer carton | 12 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Shape | Rectangular | ? Product shape. |
| Suitable for CDM-Tm Mini PGJ5 | 1x20W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Voltage | 230V | ? This may be either a fixed voltage or two values, in which case the product can be used within these limits. |
| Width | 44mm | ? Maximum width in millimetres. |
| Material number (12NC) | 913700656766 | ? Material number from Philips |
| EAN code | 8711500881885 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
| EAN code (extra) | 08727900771282 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
Philips HID-PV m CDM-Tm PGj5 20W/S HPF EVSA inbouw
9137 006 567
9137 006 567
Download productinformatieblad
