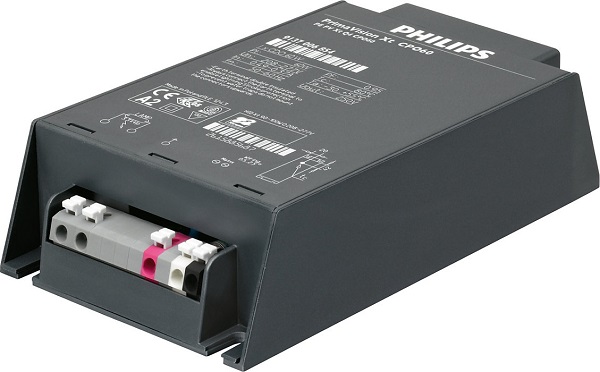

Philips HID-PV Xt 70 CDO Q1 208-277V evsa HID PrimaVision Xtreme Qcan CDO
Properties
Downloads
Your corrections
| Manufacturer's article number | 69886900 | ? Manufacturer's part number. |
| Ballast | Electronic | ? A conventional ballast has a wound coil. It is somewhat cheaper to buy, but more expensive to run because more power is converted into heat. An electronic ballast not only has a lower power consumption, but it also has the advantage of longer lamp life. |
| Ballast version | Built-in ballast without strain relief |
?
Version of the ballast. |
| Brand | Philips | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Cable capacity output wires mutual | 1000pF |
?
Ballasts that include an ignitor to start the HID lamp are limited in the distance between ignitor / ballast and lamp. This capacity in pF may not be higher than the maximum value. A typical value for cable is 100pF/meter. |
| Dimmable | No | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |
| Height | 40mm | ? Maximum height in millimetres. |
| Length | 150mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Pieces per outer carton | 12 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Suitable for CDM/CDO-ET/TT | 1x70W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Voltage | 208V-277V | ? This may be either a fixed voltage or two values, in which case the product can be used within these limits. |
| Width | 90mm | ? Maximum width in millimetres. |
| Material number (12NC) | 913700690966 | ? Material number from Philips |
| EAN code | 8718291698869 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
| EAN code (extra) | 08718291698876 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
Philips HID-PV Xt 70 CDO Q1 208-277V evsa
HID PrimaVision Xtreme Qcan CDO
HID PrimaVision Xtreme Qcan CDO
Download productinformatieblad
