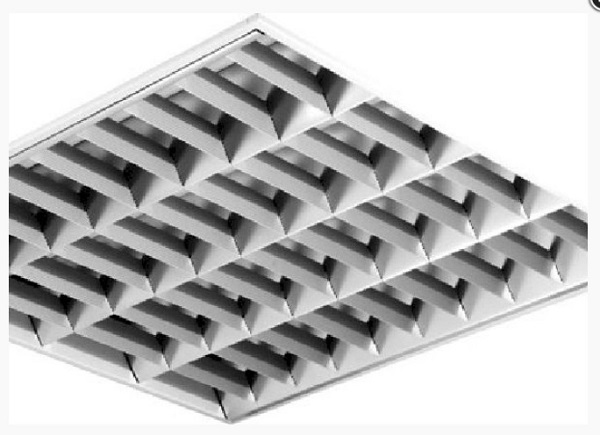

PIL Lumis ELA AM HF 4x18W mat met 3 polig chassisdeel male en femalevoor platte stekkers en gemonteerde lichtbronnen 18W 840
Properties
Downloads
Your corrections
| Manufacturer's article number | 19-00366 | ? Manufacturer's part number. |
| Ballast | Electronic | ? A conventional ballast has a wound coil. It is somewhat cheaper to buy, but more expensive to run because more power is converted into heat. An electronic ballast not only has a lower power consumption, but it also has the advantage of longer lamp life. |
| Brand | PIL | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Colour code | 840 |
?
Light colour is often represented with a 3 digit number. The first digit indicates the CRI (Colour Rendering Index) or CRI Ra value: 5 = 50-59 6 = 60-69 7 = 70-79 8 = 80-89 9 = 90-99 The last 2 digits are for colour temperature. The higher the colour temperature, the cooler the impression of light. Warm white creates a cosy, welcoming atmosphere. Neutral cool-white creates a more businesslike atmosphere. Low lighting levels in interior must be obtained with warm-white light. If a very high level of light is needed, this must be achieved with neutral or cool white light. 2700K extra warm white 3000K warm white 3500K neutral white 4000K cool white 5000-5500K daylight 6000K cool daylight |
| Colour temperature | 4000K |
?
Colour temperature is expressed in kelvin (K). The higher the colour temperature, the cooler the impression of the light: 2700K: extra warm white
Extra warm white creates a warm, inviting atmosphere (e.g. hotel, living room, and catering). Warm white can be used for a pleasant atmosphere (e.g. retail and office). Neutral cool white creates a more businesslike atmosphere, this color gives a sterile atmosphere.
|
| Connection power output | Flat 3 pole connector male | ? The way the power can be tapped for looping through. |
| Dimmable | No | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |
| Height | 95mm | ? Maximum height in millimetres. |
| Hole size | 585x585mm | ? The size of the hole you can build in the fixture. |
| Lamp base | G13 | ? Cap, lamp holder or lamp base type. |
| Lamp included | Yes | ? Luminaire including or excluding lamp(s). |
| Length | 597mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Light source | T8 | ? Type of lamp that fits in the luminaire. In some cases, several types of lamps can be used in one luminaire. |
| Luminaire application | Indoor | ? Application of the luminaire depending on the environment. For example, an indoor fitting cannot be used outdoors. An outdoor luminaire, on the other hand, could be used indoors, but may be less suitable here, fore example because it provides too much light or is aesthetically unsuitable. |
| Luminaire type | Ceiling recessed | ? Type of luminaire application. |
| Outside dimensions | 597x597mm | ? Outside Dimension is the largest size, often of the lamp head. |
| Pieces per outer carton | 1 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Reflector version | Matte | ? The type of reflector which is in the armature located. For TL-D luminaires matt the most applied, dirt on the reflector is not or hardly seen. For T5 fixtures is a high gloss reflector optical much nicer, the luminaire is less seen. In the LTS fittings with SDW-T or SDW-TG lamps for the bakery in the past is often used a gold reflector for a warmer color. For expansion with existing fixtures would be an option. We prefer a silver reflector with possibly a bakery filter because much less distortion of the color displays compared to a gold reflector. |
| Suitable for number of lamps | 4 | ? The number of lights that the luminaire can contain. Most luminaires are supplied without lamps. If lamps are included can be found in filter property Lamp included. |
| Voltage | 230V | ? This may be either a fixed voltage or two values, in which case the product can be used within these limits. |
| Width | 597mm | ? Maximum width in millimetres. |
| EAN code | 5414833029544 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
| EAN code (extra) | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
