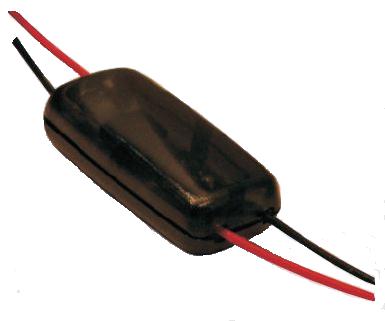

QLT LVX LED Driver 350mA 10-28V DC 12V AC met draden 230mm vermogen 3W bij 11-15V 6W bij 22-24V
Properties
Downloads
Your corrections
| Manufacturer's article number | LVX | ? Manufacturer's part number. |
| Ballast | LED Converter | ? A conventional ballast has a wound coil. It is somewhat cheaper to buy, but more expensive to run because more power is converted into heat. An electronic ballast not only has a lower power consumption, but it also has the advantage of longer lamp life. |
| Brand | QLT | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Connection output | Cord |
?
Connection type of the output. |
| Connection power input | 1 x cord |
?
The way the power can be connected. |
| Dimmable | No | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |
| Height | 10mm | ? Maximum height in millimetres. |
| Input voltage | 10V-28V DC (direct current) or 12V AC (alternating current) |
?
This may be a fixed voltage or two values with a hyphen. You can use the product within these limits. |
| Length | 40mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Ouput current | 350mA | ? Each type of LED requires a different driver. Current-controlled LEDs of 350, 700, 1050 and 1400mA need to be connected in series. This can be easily done with an LED distributor. Unused outputs are shorted with a wire . First connect the wires, then you can put power on! Never disconnect wires under power! |
| Pieces per outer carton | 1 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Shape | Rectangular | ? Product shape. |
| Width | 18mm | ? Maximum width in millimetres. |
| EAN code | 8720584138235 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
| EAN code (extra) | 3.10.0120 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
QLT LVX LED Driver 350mA 10-28V DC 12V AC met draden 230mm
vermogen 3W bij 11-15V 6W bij 22-24V
vermogen 3W bij 11-15V 6W bij 22-24V
Download productinformatieblad
