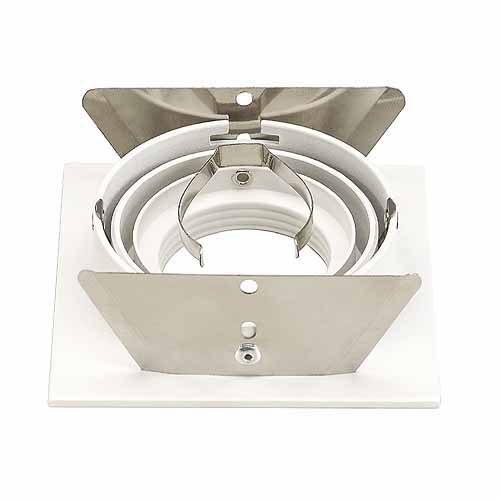

SLV 111721 New Tria ES50 GU10 50W plafond inbouwarmatuur square wit mat met bladveer
| Manufacturer's article number | 111721 | ? Manufacturer's part number. |
| Appliance class | Class II (double insulated) |
?
In the electrical appliance manufacturing industry, the following IEC protection classes are used to differentiate between the protective-earth connection requirements of devices. Class I These appliances must have their chassis connected to electrical earth (ground). This earth conductor is coloured green/yellow in most countries (green in US, Canada and Japan)
Class II These appliances are double insulated. It has been designed is such a way that is does not require a safety connection to electrical earth (ground)
Class III These appliances are designed to be supplied from a separated/safety extra-low voltage (SELV) power source maximum 50V (Volt) AC alternating current. The voltage from a SELV supply is low enough that under normal conditions a person can safely come into contact with it without risk of electrical shock.
|
| Ballast | Exclusive | ? A conventional ballast has a wound coil. It is somewhat cheaper to buy, but more expensive to run because more power is converted into heat. An electronic ballast not only has a lower power consumption, but it also has the advantage of longer lamp life. |
| Big White 2021 page no. | 422 |
?
Page number in SLV Big White catalogue 2021. |
| Big White 2022 page no. | 352 |
?
Page number in SLV Big White catalogue 2022. |
| Brand | SLV | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Colour | White | ? Most common colour in the product. |
| Dimmable | Yes | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |
| Height | 110mm | ? Maximum height in millimetres. |
| Hole size | Ø78mm | ? The size of the hole you can build in the fixture. |
| Lamp base | GU10 | ? Cap, lamp holder or lamp base type. |
| Lamp included | No | ? Luminaire including or excluding lamp(s). |
| Length | 90mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Light source | ES50 | ? Type of lamp that fits in the luminaire. In some cases, several types of lamps can be used in one luminaire. |
| Luminaire application | Indoor | ? Application of the luminaire depending on the environment. For example, an indoor fitting cannot be used outdoors. An outdoor luminaire, on the other hand, could be used indoors, but may be less suitable here, fore example because it provides too much light or is aesthetically unsuitable. |
| Luminaire type | Ceiling recessed | ? Type of luminaire application. |
| Material | Aluminium | ? Material of which the major part of the product is made. |
| Pieces per outer carton | 1 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Recessed depth | 130mm | ? The required recessed height behind the luminaire. More space is often needed due to heat development and tilting of the luminaire. |
| Rotation angle | 360° | ? The number of degrees the fixture can rotate in a horizontal direction. |
| Suitable for number of lamps | 1 | ? The number of lights that the luminaire can contain. Most luminaires are supplied without lamps. If lamps are included can be found in filter property Lamp included. |
| Tilt angle | 30° | ? The number of degrees that the fixture can be tilted vertically. |
| Voltage | 220V-240V | ? This may be either a fixed voltage or two values, in which case the product can be used within these limits. |
| Wattage | 50W | ? The power that the bulb consumes. This does not include the loss of any ballast or transformer. |
| Width | 90mm | ? Maximum width in millimetres. |
| EAN code | 4024163138635 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
| EAN code (extra) | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
