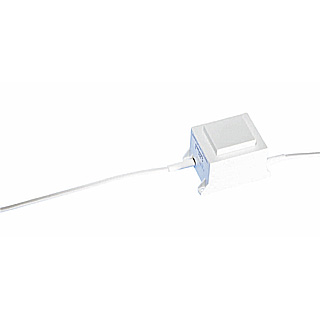

SLV conventionele halogeen transformator 12V 105W 451105 308835
| Manufacturer's article number | 451105 | ? Manufacturer's part number. |
| Appliance class | Class II (double insulated) |
?
In the electrical appliance manufacturing industry, the following IEC protection classes are used to differentiate between the protective-earth connection requirements of devices. Class I These appliances must have their chassis connected to electrical earth (ground). This earth conductor is coloured green/yellow in most countries (green in US, Canada and Japan)
Class II These appliances are double insulated. It has been designed is such a way that is does not require a safety connection to electrical earth (ground)
Class III These appliances are designed to be supplied from a separated/safety extra-low voltage (SELV) power source maximum 50V (Volt) AC alternating current. The voltage from a SELV supply is low enough that under normal conditions a person can safely come into contact with it without risk of electrical shock.
|
| Ballast | Conventional transformer | ? A conventional ballast has a wound coil. It is somewhat cheaper to buy, but more expensive to run because more power is converted into heat. An electronic ballast not only has a lower power consumption, but it also has the advantage of longer lamp life. |
| Big White 2021 page no. | 828 |
?
Page number in SLV Big White catalogue 2021. |
| Brand | SLV | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Colour | White | ? Most common colour in the product. |
| Dimmable | Yes, L dimmer (Conventional transformer) | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |
| Height | 80mm | ? Maximum height in millimetres. |
| Input voltage | 230V |
?
This may be a fixed voltage or two values with a hyphen. You can use the product within these limits. |
| IP protection degree | IP40 |
?
The IP (Ingress Protection) code indicates the degree of protection
against ingress of
moisture and
solid objects. The code consists of two firures.
The second figure indicats the protection against water: |
| Length | 110mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Material | Plastic | ? Material of which the major part of the product is made. |
| Maximum wattage | 105W | ? Maximum amount of power, expressed in watts, that can be connected to the transformer in order to work properly. If the assets exceed this maximum amount, the transformer may behave abnormally: known phenomena in electronic transformers are the lights switching on and off, and no output voltage. |
| Minimum wattage | 80W |
?
The minimum power must be connected to the transformer to work properly. If the assets are below the transformer behave abnormally. Known phenomena are electronic transformers are flashing lights, brighter and fainter burning lamps and no output voltage. A conventional wound transformer must be at least 75% of the maximum power charge. If the load is below this limit, the output voltage too high making the lamps extremely much shorter life. The color of the lamps is usually very white. |
| Old article number | 308835 | ? Old part number of the manufacturere. By renumbering, each SLV article has a new Europian part number. |
| Output voltage | 12V AC (alternating current) | ? The output voltage is indicated here. Voltage-controlled LEDs must always be connected in parallel. |
| Pieces per outer carton | 1 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Shape | Block | ? Product shape. |
| Voltage | 12V AC (alternating current) | ? This may be either a fixed voltage or two values, in which case the product can be used within these limits. |
| Wattage | 105W | ? The power that the bulb consumes. This does not include the loss of any ballast or transformer. |
| Width | 75mm | ? Maximum width in millimetres. |
| EAN code | 4024163088350 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
| EAN code (extra) | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
Download productinformatieblad
