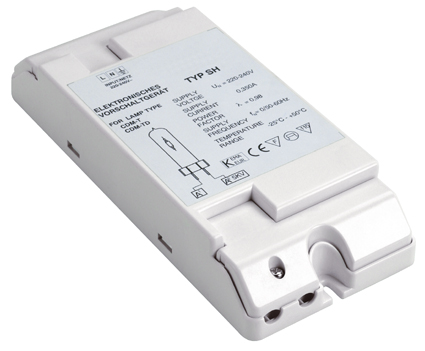

SLV elektronisch voorschakelapparaat HQI/CDM 35W 470360 309353 niet voor Philips CDM-R mini MR16 en CDM-Tm lichtbronnen geschikt
| Manufacturer's article number | 470360 | ? Manufacturer's part number. |
| Appliance class | Class I (earthed) |
?
In the electrical appliance manufacturing industry, the following IEC protection classes are used to differentiate between the protective-earth connection requirements of devices. Class I These appliances must have their chassis connected to electrical earth (ground). This earth conductor is coloured green/yellow in most countries (green in US, Canada and Japan)
Class II These appliances are double insulated. It has been designed is such a way that is does not require a safety connection to electrical earth (ground)
Class III These appliances are designed to be supplied from a separated/safety extra-low voltage (SELV) power source maximum 50V (Volt) AC alternating current. The voltage from a SELV supply is low enough that under normal conditions a person can safely come into contact with it without risk of electrical shock.
|
| Ballast | Electronic | ? A conventional ballast has a wound coil. It is somewhat cheaper to buy, but more expensive to run because more power is converted into heat. An electronic ballast not only has a lower power consumption, but it also has the advantage of longer lamp life. |
| Ballast version | Surface-mounted with strain relief |
?
Version of the ballast. |
| Brand | SLV | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Dimmable | No | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |
| Height | 32mm | ? Maximum height in millimetres. |
| Length | 129mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Material | Plastic | ? Material from which the major part of the product is made. When it comprises multiple materials, these are included in the description, separated by a slash (/). |
| Old article number | 309353 | ? Old part number of the manufacturere. By renumbering, each SLV article has a new Europian part number. |
| Pieces per outer carton | 1 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Suitable for Britespot 111 | 1x35W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for CDM-R | 1x35W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for CDM-R111 | 1x35W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for CDM-T | 1x35W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for CDM-TC | 1x35W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for CDM-TD | 1x35W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for CMH GU6.5 + HCI-TC-Tf | 1x35W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for CMH MR16 + Britespot 50 | 1x35W |
?
Note General Electric and Sylvania have an ignition of 4kV, Philips 1.5 kV, therefore these are not interchangeable. You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Voltage | 230V | ? This may be either a fixed voltage or two values, in which case the product can be used within these limits. |
| Width | 76mm | ? Maximum width in millimetres. |
| EAN code | 4024163093538 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
| EAN code (extra) | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
niet voor Philips CDM-R mini MR16 en CDM-Tm lichtbronnen geschikt
Download productinformatieblad
