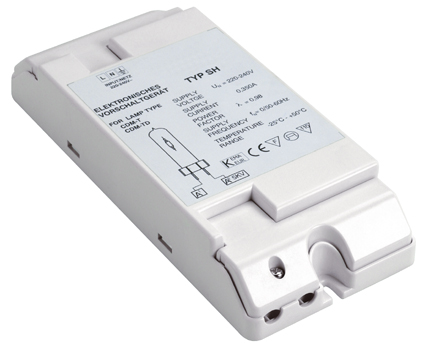

SLV elektronisch voorschakelapparaat HQI/CDM 70W 470370 309354
| Manufacturer's article number | 470370 | ? Manufacturer's part number. |
| Appliance class | Class I (earthed) |
?
In the electrical appliance manufacturing industry, the following IEC protection classes are used to differentiate between the protective-earth connection requirements of devices. Class I These appliances must have their chassis connected to electrical earth (ground). This earth conductor is coloured green/yellow in most countries (green in US, Canada and Japan)
Class II These appliances are double insulated. It has been designed is such a way that is does not require a safety connection to electrical earth (ground)
Class III These appliances are designed to be supplied from a separated/safety extra-low voltage (SELV) power source maximum 50V (Volt) AC alternating current. The voltage from a SELV supply is low enough that under normal conditions a person can safely come into contact with it without risk of electrical shock.
|
| Ballast | Electronic | ? A conventional ballast has a wound coil. It is somewhat cheaper to buy, but more expensive to run because more power is converted into heat. An electronic ballast not only has a lower power consumption, but it also has the advantage of longer lamp life. |
| Ballast version | Surface-mounted with strain relief |
?
Version of the ballast. |
| Brand | SLV | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Dimmable | No | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |
| Height | 32mm | ? Maximum height in millimetres. |
| Length | 129mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Pieces per outer carton | 1 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Suitable for Britespot 111 | 1x70W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for CDM-R | 1x70W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for CDM-R111 | 1x70W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for CDM-T | 1x70W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for CDM-TC | 1x70W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for CDM-TD | 1x70W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for HQI | 1x70W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Voltage | 230V | ? This may be either a fixed voltage or two values, in which case the product can be used within these limits. |
| Width | 76mm | ? Maximum width in millimetres. |
| EAN code | 4024163093545 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
| EAN code (extra) | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. | |
| Old article number | 309354 | ? Old part number of the manufacturere. By renumbering, each SLV article has a new Europian part number. |
