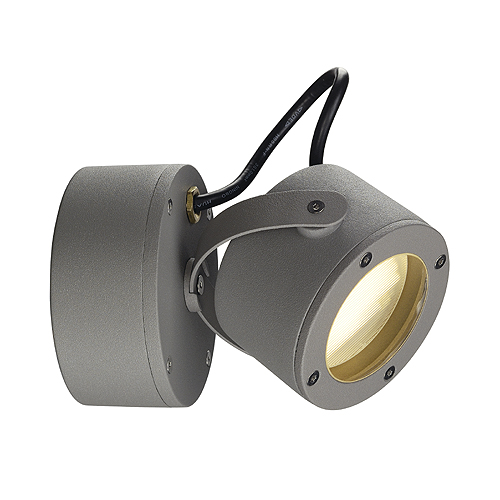

SLV Sitra 360 WL GX53 9W wand- en plafond opbouwarmatuur IP44 steengrijs 231514 313017
| Manufacturer's article number | 231514 | ? Manufacturer's part number. |
| Appliance class | Class I (earthed) |
?
In the electrical appliance manufacturing industry, the following IEC protection classes are used to differentiate between the protective-earth connection requirements of devices. Class I These appliances must have their chassis connected to electrical earth (ground). This earth conductor is coloured green/yellow in most countries (green in US, Canada and Japan)
Class II These appliances are double insulated. It has been designed is such a way that is does not require a safety connection to electrical earth (ground)
Class III These appliances are designed to be supplied from a separated/safety extra-low voltage (SELV) power source maximum 50V (Volt) AC alternating current. The voltage from a SELV supply is low enough that under normal conditions a person can safely come into contact with it without risk of electrical shock.
|
| Brand | SLV | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Cable entry | 6-12mm | ? The diameter of cable entry. |
| Colour | Stone grey | ? Most common colour in the product. |
| Depth | 170mm | ? Depth in millimetres. |
| Height | 116mm | ? Maximum height in millimetres. |
| IP protection degree | IP44 |
?
The IP (Ingress Protection) code indicates the degree of protection
against ingress of
moisture and
solid objects. The code consists of two firures.
The second figure indicats the protection against water: |
| Lamp base | GX53 | ? Cap, lamp holder or lamp base type. |
| Lamp included | No | ? Luminaire including or excluding lamp(s). |
| Light source | Spaarlamp GX53 | ? Type of lamp that fits in the luminaire. In some cases, several types of lamps can be used in one luminaire. |
| Luminaire application | Outdoor | ? Application of the luminaire depending on the environment. For example, an indoor fitting cannot be used outdoors. An outdoor luminaire, on the other hand, could be used indoors, but may be less suitable here, fore example because it provides too much light or is aesthetically unsuitable. |
| Luminaire type | Wall surface mounted, Ceiling surface mounted | ? Type of luminaire application. |
| Old article number | 313017 | ? Old part number of the manufacturere. By renumbering, each SLV article has a new Europian part number. |
| Outside dimensions | Ø100mm | ? Outside Dimension is the largest size, often of the lamp head. |
| Pieces per outer carton | 1 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Rotation angle | 90° | ? The number of degrees the fixture can rotate in a horizontal direction. |
| Suitable for number of lamps | 1 | ? The number of lights that the luminaire can contain. Most luminaires are supplied without lamps. If lamps are included can be found in filter property Lamp included. |
| Tilt angle | 90° | ? The number of degrees that the fixture can be tilted vertically. |
| Voltage | 230V | ? This may be either a fixed voltage or two values, in which case the product can be used within these limits. |
| Wattage | 9W | ? The power that the bulb consumes. This does not include the loss of any ballast or transformer. |
| EAN code | 4024163130172 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
| EAN code (extra) | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
Download productinformatieblad
