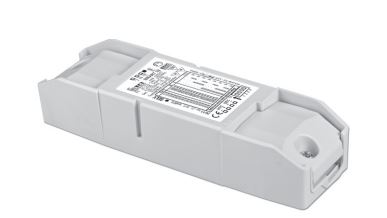

TCI 122217N Smart 32 multifunctionele LED driver niet dimbaar
Properties
Alternative items
Downloads
Your corrections
| Manufacturer's article number | 122217N | ? Manufacturer's part number. |
| Ballast | LED Converter | ? A conventional ballast has a wound coil. It is somewhat cheaper to buy, but more expensive to run because more power is converted into heat. An electronic ballast not only has a lower power consumption, but it also has the advantage of longer lamp life. |
| Ballast version | Surface-mounted with strain relief |
?
Version of the ballast. |
| Brand | TCI | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Dimmable | No | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |
| Height | 30mm | ? Maximum height in millimetres. |
| Input voltage | 220V-240V |
?
This may be a fixed voltage or two values with a hyphen. You can use the product within these limits. |
| Length | 146,5mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Ouput current | 300mA, 350mA, 400mA, 450mA, 500mA, 550mA, 600mA, 650mA, 700mA, 750mA, 800mA, 850mA, 900mA, 950mA, 1000mA, 1050mA | ? Each type of LED requires a different driver. Current-controlled LEDs of 350, 700, 1050 and 1400mA need to be connected in series. This can be easily done with an LED distributor. Unused outputs are shorted with a wire . First connect the wires, then you can put power on! Never disconnect wires under power! |
| Pieces per outer carton | 1 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Shape | Oblong | ? Product shape. |
| Width | 43,5mm | ? Maximum width in millimetres. |
TCI 122217N Smart 32 multifunctionele LED driver niet dimbaar
dmv dipswitch intern instelbaar voor verschillende stromen. LED stroomsturing 250mA 11W, 300mA 13W, 350mA 16W, 400mA 20W, 450mA 20W, 500mA 22W, 550mA 25W, 600mA 27W, 650mA 29W, 700mA 32W, 750mA 32W, 800mA 32W, 850mA 32W, 900mA 32W, 950mA 32W, 1000mA 32W
dmv dipswitch intern instelbaar voor verschillende stromen. LED stroomsturing 250mA 11W, 300mA 13W, 350mA 16W, 400mA 20W, 450mA 20W, 500mA 22W, 550mA 25W, 600mA 27W, 650mA 29W, 700mA 32W, 750mA 32W, 800mA 32W, 850mA 32W, 900mA 32W, 950mA 32W, 1000mA 32W
Download PDF/TCI Smart 32 manual.pdf
