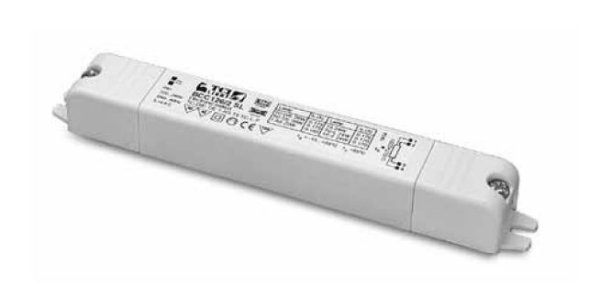

TCI 137944/22H BCC122/2 SL EVSA elektronisch voorschakelapparaat met trekontlasting
Properties
Downloads
Your corrections
| Manufacturer's article number | 137944/22H | ? Manufacturer's part number. |
| Ballast | Electronic | ? A conventional ballast has a wound coil. It is somewhat cheaper to buy, but more expensive to run because more power is converted into heat. An electronic ballast not only has a lower power consumption, but it also has the advantage of longer lamp life. |
| Ballast version | Surface-mounted with strain relief |
?
Version of the ballast. |
| Brand | TCI | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Connection power input | 1 x springclamp |
?
The way the power can be connected. |
| Dimmable | No | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |
| Height | 19mm | ? Maximum height in millimetres. |
| Length | 158mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Pieces per outer carton | 30 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Power factor | 0,6 | ? Power factor is the ratio between net power and apparent power. The PF is the value that indicates how efficiently electrical power is delivered to the consumer. Ideally, the PF is equal to 1. Anything below 1 means that additional power is required to deliver the desired power to the consumer. |
| Shape | Oblong | ? Product shape. |
| Start type | Warm start >5x switching a day |
?
Ballasts come in a cold and warm start. Cold start is slightly more energy efficient but has the disadvantage that it only up to 3x per day may change, otherwise it is defective. Warm start is today the most widely used. |
| Suitable for 2D 4p | 1x21W, 1x28W |
?
Suitable for PL-Q 4-pin CFL Square 4 pin, 4 pin 2D lamps. You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for TL5 16mm circular | 1x22W | ? Suitable for TL5 Circular, T5 FC lamps. You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Voltage | 220V-240V | ? This may be either a fixed voltage or two values, in which case the product can be used within these limits. |
| Width | 22mm | ? Maximum width in millimetres. |
TCI 137944/22H BCC122/2 SL EVSA elektronisch voorschakelapparaat met trekontlasting
Download PDF/29104135 datasheet.pdf
