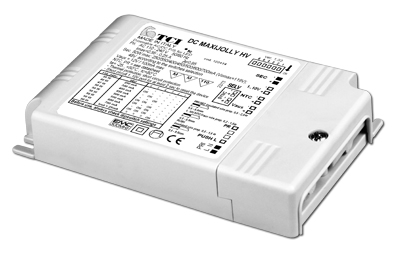

TCI DC Maxi Jolly HV 1-10V push+dim IP20 122414
Properties
Downloads
Your corrections
| Manufacturer's article number | 122414 | ? Manufacturer's part number. |
| Ballast | LED Converter | ? A conventional ballast has a wound coil. It is somewhat cheaper to buy, but more expensive to run because more power is converted into heat. An electronic ballast not only has a lower power consumption, but it also has the advantage of longer lamp life. |
| Ballast version | Surface-mounted with strain relief |
?
Version of the ballast. |
| Brand | TCI | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Dimmable | 1-10V, Pushbutton, Potentiometer | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |
| Height | 22mm | ? Maximum height in millimetres. |
| Input voltage | 110V-240V |
?
This may be a fixed voltage or two values with a hyphen. You can use the product within these limits. |
| Length | 124,5mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Ouput current | 250mA, 300mA, 350mA, 400mA, 450mA, 500mA, 550mA, 600mA, 650mA, 700mA | ? Each type of LED requires a different driver. Current-controlled LEDs of 350, 700, 1050 and 1400mA need to be connected in series. This can be easily done with an LED distributor. Unused outputs are shorted with a wire . First connect the wires, then you can put power on! Never disconnect wires under power! |
| Output voltage | 48V DC (direct current) | ? The output voltage is indicated here. Voltage-controlled LEDs must always be connected in parallel. |
| Pieces per outer carton | 10 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Shape | Rectangular | ? Product shape. |
| Width | 79mm | ? Maximum width in millimetres. |
| EAN code | 8010703351639 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
| EAN code (extra) | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
TCI DC Maxi Jolly HV 1-10V push+dim IP20 122414
dmv dipswitch intern instelbaar voor verschillende stromen. LED stroomsturing 250mA 30W (30 LED's), 300mA 34W (30 LED's), 350mA 40W (30 LED's), 400mA 47W (28 LED's), 450mA 50W (27 LED's), 500mA 50W (25 LED's), 550mA 50W (22 LED's), 600mA 50W (20 LED's), 650mA 50W (20 LED's), 700mA 50W (18 LED's)
met syncronisatie kabel maximaal 10 stuks door te koppelen 1 master en 9 slave sturingen
Voor 230V netspanning gelden deze waarden, zie de PDF manual bij gebruik op 110V.
dmv dipswitch intern instelbaar voor verschillende stromen. LED stroomsturing 250mA 30W (30 LED's), 300mA 34W (30 LED's), 350mA 40W (30 LED's), 400mA 47W (28 LED's), 450mA 50W (27 LED's), 500mA 50W (25 LED's), 550mA 50W (22 LED's), 600mA 50W (20 LED's), 650mA 50W (20 LED's), 700mA 50W (18 LED's)
met syncronisatie kabel maximaal 10 stuks door te koppelen 1 master en 9 slave sturingen
Voor 230V netspanning gelden deze waarden, zie de PDF manual bij gebruik op 110V.
Download PDF/TCI 122414.pdf
