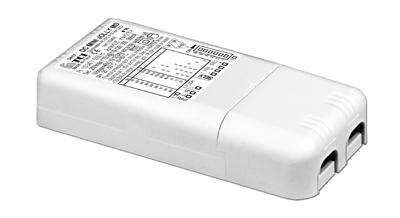

TCI DC Mini Jolly LC 1-10V push and dim multifunctionele LED driver 122401
Properties
Downloads
Your corrections
| Manufacturer's article number | 122401 | ? Manufacturer's part number. |
| Ballast | LED Converter | ? A conventional ballast has a wound coil. It is somewhat cheaper to buy, but more expensive to run because more power is converted into heat. An electronic ballast not only has a lower power consumption, but it also has the advantage of longer lamp life. |
| Ballast version | Surface-mounted with strain relief |
?
Version of the ballast. |
| Brand | TCI | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Dimmable | 1-10V, Pushbutton, Potentiometer | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |
| Height | 22mm | ? Maximum height in millimetres. |
| Input voltage | 220V-240V |
?
This may be a fixed voltage or two values with a hyphen. You can use the product within these limits. |
| Length | 110,4mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Ouput current | 100mA, 140mA, 180mA, 220mA, 260mA, 300mA, 340mA, 380mA | ? Each type of LED requires a different driver. Current-controlled LEDs of 350, 700, 1050 and 1400mA need to be connected in series. This can be easily done with an LED distributor. Unused outputs are shorted with a wire . First connect the wires, then you can put power on! Never disconnect wires under power! |
| Output voltage | 24V DC (direct current) | ? The output voltage is indicated here. Voltage-controlled LEDs must always be connected in parallel. |
| Pieces per outer carton | 1 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Shape | Rectangular | ? Product shape. |
| Width | 52mm | ? Maximum width in millimetres. |
TCI DC Mini Jolly LC 1-10V push and dim multifunctionele LED driver 122401
dmv dipswitch intern instelbaar voor verschillende stromen en vaste 24V DC spanning.
dmv dipswitch intern instelbaar voor verschillende stromen en vaste 24V DC spanning.
Download PDF/TCI 122401 manual.pdf
