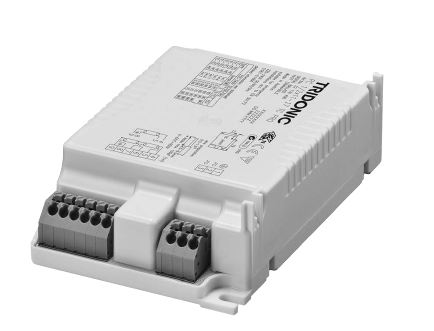

Tridonic 22176408 PC Pro 1/2x26-42 TC PRO
Properties
Downloads
Your corrections
| Manufacturer's article number | 22176408 | ? Manufacturer's part number. |
| Ballast | Electronic | ? A conventional ballast has a wound coil. It is somewhat cheaper to buy, but more expensive to run because more power is converted into heat. An electronic ballast not only has a lower power consumption, but it also has the advantage of longer lamp life. |
| Ballast version | Built-in ballast without strain relief |
?
Version of the ballast. |
| Brand | Tridonic | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Dimmable | No | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |
| Height | 31mm | ? Maximum height in millimetres. |
| Length | 103mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Pieces per outer carton | 1 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Shape | Rectangular | ? Product shape. |
| Suitable for Dulux F 4p | 1x18W, 1x24W, 2x18W, 2x24W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for PL-C 4p | 1x26W, 2x26W |
?
Suitable for PL-C 4 Pin, Dulux D / E, Biax D / E, Lynx CF-DE lamps. You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for PL-L 4p | 1x18W, 1x24W, 2x18W, 2x24W |
?
Suitable for PL-L 4, L Dulux, Biax L, Lynx CF-L lamps. You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for PL-T 4p | 1x26W, 1x32W, 1x42W, 2x26W | ? Suitable for PL-T 4 Pin, Dulux T / E, Biax T / E, CF Lynx-TE lamps. You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for TL5 16mm circular | 1x22W, 1x40W, 2x22W | ? Suitable for TL5 Circular, T5 FC lamps. You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Temperature range | -25° to 50° C | ? If applied outside the specified temperature range, the components will not function properly. |
| Voltage | 198V-264V | ? This may be either a fixed voltage or two values, in which case the product can be used within these limits. |
| Width | 67mm | ? Maximum width in millimetres. |
Tridonic 22176408 PC Pro 1/2x26-42 TC PRO
Download productinformatieblad
