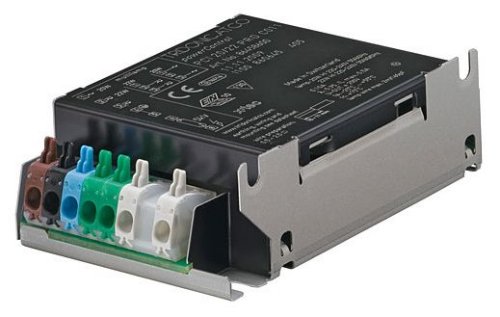

Tridonic PCI 0035 B011 elektronisch voorschakelapparaat 35W inbouwmodel
Properties
Downloads
Your corrections
| Manufacturer's article number | 86457897 | ? Manufacturer's part number. |
| Ballast | Electronic | ? A conventional ballast has a wound coil. It is somewhat cheaper to buy, but more expensive to run because more power is converted into heat. An electronic ballast not only has a lower power consumption, but it also has the advantage of longer lamp life. |
| Ballast version | Built-in ballast without strain relief |
?
Version of the ballast. |
| Brand | Tridonic | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Connection output | 1 x springclamp |
?
Connection type of the output. |
| Connection power input | 1 x springclamp |
?
The way the power can be connected. |
| Connection power output | No | ? The way the power can be tapped for looping through. |
| Dimmable | No | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |
| Height | 28mm | ? Maximum height in millimetres. |
| Length | 90mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Pieces per outer carton | 1 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Suitable for Britespot 111 | 1x35W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for CDM-R | 1x35W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for CDM-R111 | 1x35W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for CDM-T | 1x35W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for CDM-TC | 1x35W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for CMH GU6.5 + HCI-TC-Tf | 1x35W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for CMH MR16 + Britespot 50 | 1x35W |
?
Note General Electric and Sylvania have an ignition of 4kV, Philips 1.5 kV, therefore these are not interchangeable. You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Voltage | 220V-240V | ? This may be either a fixed voltage or two values, in which case the product can be used within these limits. |
| Width | 60mm | ? Maximum width in millimetres. |
| EAN code | 7612696112191 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
| EAN code (extra) | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
Tridonic PCI 0035 B011 elektronisch voorschakelapparaat 35W
inbouwmodel
inbouwmodel
Download productinformatieblad
