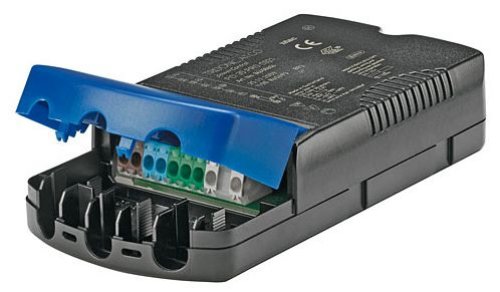

Tridonic PCI 1/70 elektronisch voorschakelapparaat 70W snoer+stekker + 1m snoer met adereindhuls naar lamp
Properties
Downloads
Your corrections
| Ballast | Electronic | ? A conventional ballast has a wound coil. It is somewhat cheaper to buy, but more expensive to run because more power is converted into heat. An electronic ballast not only has a lower power consumption, but it also has the advantage of longer lamp life. |
| Ballast version | Pre-assembled with wiring |
?
Version of the ballast. |
| Brand | Tridonic | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Connection output | 1 x cord 1m |
?
Connection type of the output. |
| Connection power input | Cord + plug 2m |
?
The way the power can be connected. |
| Connection power output | 1 x spring clamp | ? The way the power can be tapped for looping through. |
| Dimmable | No | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |

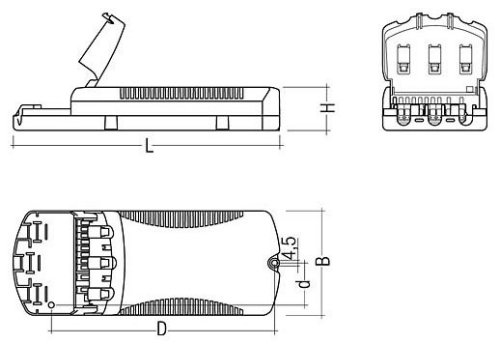

| Height | 34mm | ? Maximum height in millimetres. |
| Length | 159,4mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Pieces per outer carton | 1 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Suitable for Britespot 111 | 1x70W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for CDM-R | 1x70W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for CDM-R111 | 1x70W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for CDM-T | 1x70W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for CDM-TC | 1x70W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for CDM-TD | 1x70W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for CDM-TP | 1x70W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for HQI | 1x70W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Voltage | 220V-240V | ? This may be either a fixed voltage or two values, in which case the product can be used within these limits. |
| Width | 82mm | ? Maximum width in millimetres. |
Tridonic PCI 1/70 elektronisch voorschakelapparaat 70W
snoer+stekker + 1m snoer met adereindhuls naar lamp
snoer+stekker + 1m snoer met adereindhuls naar lamp
Download productinformatieblad
