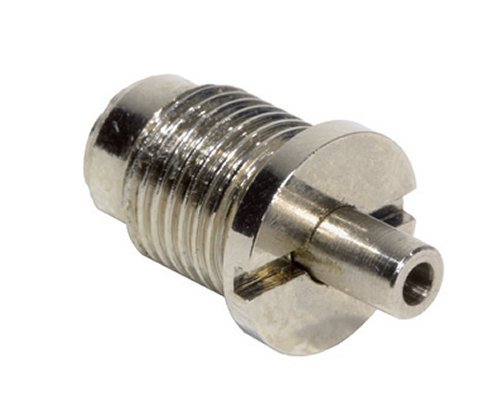

Verstelbus nikkel M10x1 uitwendig met sleuf voor 1,5mm staaldraad max. 12kg
Properties
Downloads
Your corrections
| Manufacturer's article number | 5.02.0348 | ? Manufacturer's part number. |
| Brand | Lumiparts | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Component type | Gripper | ? Articles classified by component type. |
| Flange diameter | 12mm | ? The diameter of the flange measured at the widest point. |
| Flange thickness | 2mm | ? The thickness of the flange measured at its thickest point. |
| Height | 22,5mm | ? Maximum height in millimetres. |
| Material | Brass | ? Material of which the major part of the product is made. |
| Pieces per outer carton | 1 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Safety nut | No | ? Een borging zorgt ervoor dat de verstelbus pas versteld kan worden als de borging is losgedraaid. Na losdraaien kan de verstelnippel ingedrukt worden. Als de juiste hoogte is ingesteld, kan de borging weer worden vastgedraaid. Dit is een extra beveiliging. |
| Thread | M10x1 | ? Specification of thread. Note M8x1, M10x1 and M13x1 are fine metric and not eqal to the standard thread! |
| Thread length | 13mm | ? Thread length in millimetres. |
| EAN code | 8720584152354 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
| EAN code (extra) | 5.02.0348 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
Verstelbus nikkel M10x1 uitwendig met sleuf
voor 1,5mm staaldraad max. 12kg
voor 1,5mm staaldraad max. 12kg
Download productinformatieblad
