SLV 228434 Dasar Exact GU10 Square ES50 GU10 35W grond inbouwarmatuur kantelbaar IP67 RVS
| Manufacturer's article number | 228434 | ? Manufacturer's part number. |
| Appliance class | Class I (earthed) |
?
In the electrical appliance manufacturing industry, the following IEC protection classes are used to differentiate between the protective-earth connection requirements of devices. Class I These appliances must have their chassis connected to electrical earth (ground). This earth conductor is coloured green/yellow in most countries (green in US, Canada and Japan)
Class II These appliances are double insulated. It has been designed is such a way that is does not require a safety connection to electrical earth (ground)
Class III These appliances are designed to be supplied from a separated/safety extra-low voltage (SELV) power source maximum 50V (Volt) AC alternating current. The voltage from a SELV supply is low enough that under normal conditions a person can safely come into contact with it without risk of electrical shock.
|
| Big White 2021 page no. | 759 |
?
Page number in SLV Big White catalogue 2021. |
| Big White 2022 page no. | 721 |
?
Page number in SLV Big White catalogue 2022. |
| Big White 2023 page no. | 845 |
?
Page number in SLV Big White catalogue 2024. |
| Big White 2025 page no. | 0975 |
?
Page number in SLV Big White catalogue 2025. |
| Big White 2026 page no. | 0981 |
?
Page number in SLV Big White catalogue 2026. |
| Brand | SLV | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Cable entry | 7-12mm | ? The diameter of cable entry. |
| Colour | Stainless steel | ? Most common colour in the product. |

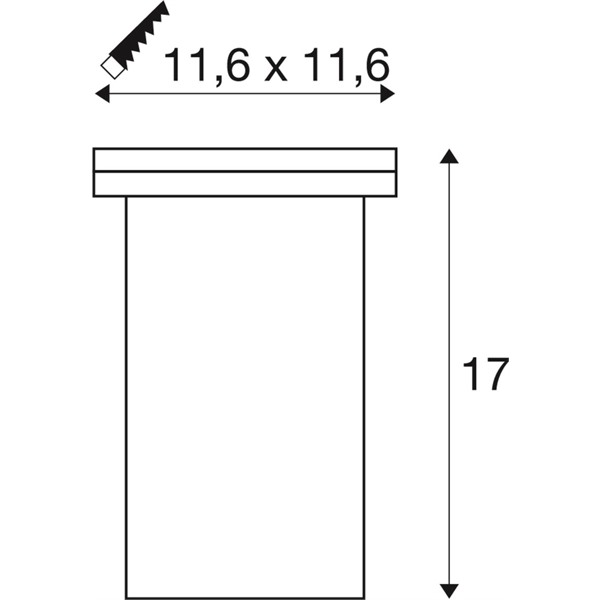

| Depth | 165mm | ? Depth in millimetres. |
| Dimmable | Yes | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |
| Hole size | 116x116mm | ? The size of the hole you can build in the fixture. |
| IP protection degree | IP67 |
?
The IP (Ingress Protection) code indicates the degree of protection
against ingress of
moisture and
solid objects. The code consists of two firures.
The second figure indicats the protection against water: |
| Lamp base | GU10 | ? Cap, lamp holder or lamp base type. |
| Lamp included | No | ? Luminaire including or excluding lamp(s). |
| Length | 116mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Light source | ES50 | ? Type of lamp that fits in the luminaire. In some cases, several types of lamps can be used in one luminaire. |
| Luminaire application | Outdoor | ? Application of the luminaire depending on the environment. For example, an indoor fitting cannot be used outdoors. An outdoor luminaire, on the other hand, could be used indoors, but may be less suitable here, fore example because it provides too much light or is aesthetically unsuitable. |
| Luminaire type | Floor recessed | ? Type of luminaire application. |
| Material | Stainless steel | ? Material of which the major part of the product is made. |
| Old article number | 312476 | ? Old part number of the manufacturere. By renumbering, each SLV article has a new Europian part number. |
| Pieces per outer carton | 1 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Recessed depth | 170mm | ? The required recessed height behind the luminaire. More space is often needed due to heat development and tilting of the luminaire. |
| Rotation angle | 90° | ? The number of degrees the fixture can rotate in a horizontal direction. |
| Suitable for number of lamps | 1 | ? The number of lights that the luminaire can contain. Most luminaires are supplied without lamps. If lamps are included can be found in filter property Lamp included. |
| Tilt angle | 30° | ? The number of degrees that the fixture can be tilted vertically. |
| Voltage | 230V | ? This may be either a fixed voltage or two values, in which case the product can be used within these limits. |
| Wattage | 35W | ? The power that the bulb consumes. This does not include the loss of any ballast or transformer. |
| Width | 116mm | ? Maximum width in millimetres. |
| EAN code | 4024163124768 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
| EAN code (extra) | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
Download productinformatieblad
