TCI 119576 BLU 160 elektronische halogeen transformator 12V 35-160VA Dali dimmen met drukknop of Dali
Properties
Downloads
Your corrections
| Manufacturer's article number | 119576 | ? Manufacturer's part number. |
| Ballast | Electronic transformer | ? A conventional ballast has a wound coil. It is somewhat cheaper to buy, but more expensive to run because more power is converted into heat. An electronic ballast not only has a lower power consumption, but it also has the advantage of longer lamp life. |
| Ballast version | Surface-mounted with strain relief |
?
Version of the ballast. |
| Brand | TCI | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Colour | White | ? Most common colour in the product. |
| Connection output | 3 x screwterminal |
?
Connection type of the output. |
| Connection power input | Screwclamp |
?
The way the power can be connected. |
| Connection power output | Screwclamp | ? The way the power can be tapped for looping through. |

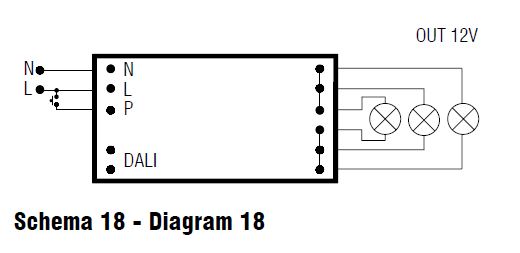

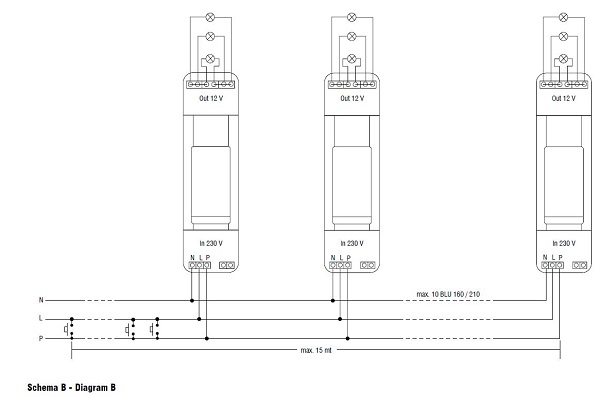

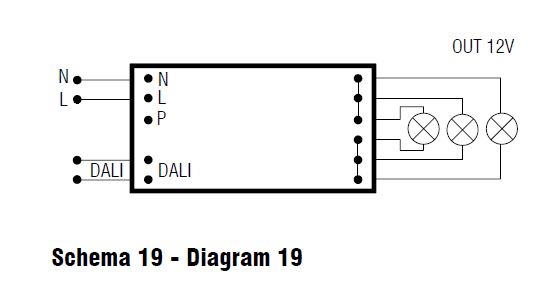

| Dimmable | Dali, Pushbutton | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |
| Height | 38mm | ? Maximum height in millimetres. |
| Input voltage | 230V-240V |
?
This may be a fixed voltage or two values with a hyphen. You can use the product within these limits. |
| Length | 180mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Maximum wattage | 160W | ? Maximum amount of power, expressed in watts, that can be connected to the transformer in order to work properly. If the assets exceed this maximum amount, the transformer may behave abnormally: known phenomena in electronic transformers are the lights switching on and off, and no output voltage. |
| Minimum wattage | 35W |
?
The minimum power must be connected to the transformer to work properly. If the assets are below the transformer behave abnormally. Known phenomena are electronic transformers are flashing lights, brighter and fainter burning lamps and no output voltage. A conventional wound transformer must be at least 75% of the maximum power charge. If the load is below this limit, the output voltage too high making the lamps extremely much shorter life. The color of the lamps is usually very white. |
| Output voltage | 12V AC (alternating current) | ? The output voltage is indicated here. Voltage-controlled LEDs must always be connected in parallel. |
| Pieces per outer carton | 1 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Shape | Oblong | ? Product shape. |
| Width | 46mm | ? Maximum width in millimetres. |
TCI 119576 BLU 160 elektronische halogeen transformator 12V 35-160VA Dali
dimmen met drukknop of Dali
dimmen met drukknop of Dali
Download PDF/TCI BLU 160-210 datasheet.pdf
