Tridonic PCI 1/70 elektronisch voorschakelapparaat 70W met trekontlasting
Properties
Downloads
Your corrections
| Manufacturer's article number | 86458607 | ? Manufacturer's part number. |
| Ballast | Electronic | ? A conventional ballast has a wound coil. It is somewhat cheaper to buy, but more expensive to run because more power is converted into heat. An electronic ballast not only has a lower power consumption, but it also has the advantage of longer lamp life. |
| Ballast version | Surface-mounted with strain relief |
?
Version of the ballast. |
| Brand | Tridonic | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Connection output | 1 x spring clamp |
?
Connection type of the output. |
| Connection power input | 1 x spring clamp |
?
The way the power can be connected. |
| Connection power output | 1 x spring clamp | ? The way the power can be tapped for looping through. |
| Dimmable | No | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |

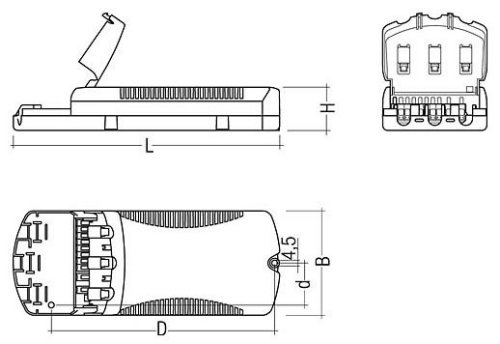

| Height | 34mm | ? Maximum height in millimetres. |
| Length | 159,4mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Pieces per outer carton | 1 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Shape | Rectangular | ? Product shape. |
| Suitable for Britespot 111 | 1x70W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for CDM-R | 1x70W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for CDM-R111 | 1x70W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for CDM-T | 1x70W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for CDM-TC | 1x70W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for CDM-TD | 1x70W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for CDM-TP | 1x70W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for HQI | 1x70W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Voltage | 220V-240V | ? This may be either a fixed voltage or two values, in which case the product can be used within these limits. |
| Width | 82mm | ? Maximum width in millimetres. |
| EAN code | 7612696140606 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
| EAN code (extra) | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
Tridonic PCI 1/70 elektronisch voorschakelapparaat 70W
met trekontlasting
met trekontlasting
Download productinformatieblad
