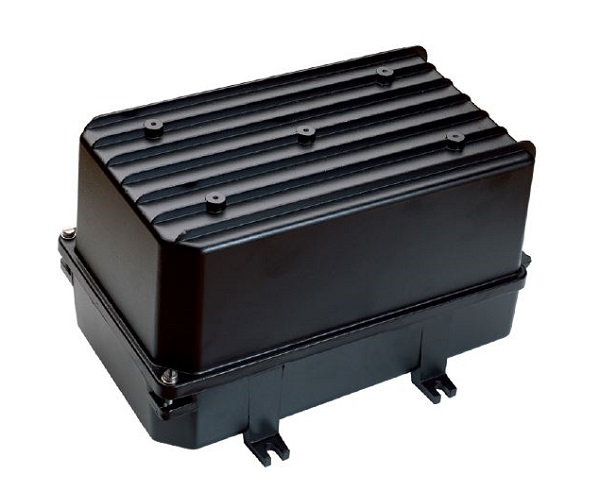

ELT 6210327 VHE 100/23-002-AF vsa 1000W 230V voor HPI-T 1000W compleet VSA met spoel, ontsteker AH 002D 0,8kV en condensator in metalen IP65 behuizing aansluitschema 1
| Manufacturer's article number | 6210327 | ? Manufacturer's part number. |
| Ballast | Conventional | ? A conventional ballast has a wound coil. It is somewhat cheaper to buy, but more expensive to run because more power is converted into heat. An electronic ballast not only has a lower power consumption, but it also has the advantage of longer lamp life. |
| Ballast version | Surface-mounted with strain relief |
?
Version of the ballast. |
| Brand | ELT | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Cable capacity output wires mutual | 10000pF |
?
Ballasts that include an ignitor to start the HID lamp are limited in the distance between ignitor / ballast and lamp. This capacity in pF may not be higher than the maximum value. A typical value for cable is 100pF/meter. |
| Dimmable | No | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |

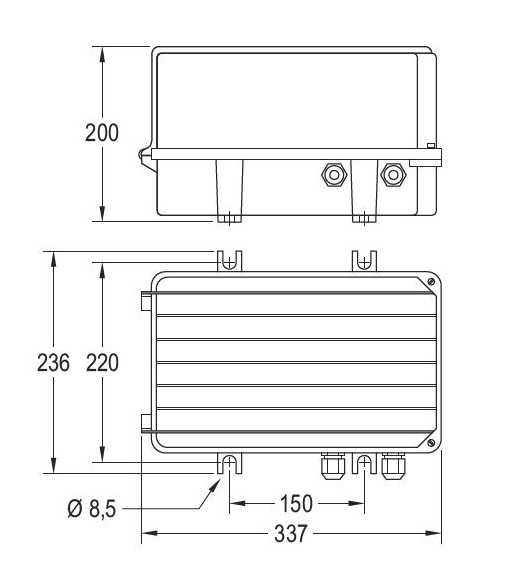

| Height | 200mm | ? Maximum height in millimetres. |
| Ignition voltage | 1,2kV | ? Ignition voltage of the ballast or lamp in kV. |
| IP protection degree | IP65 |
?
The IP (Ingress Protection) code indicates the degree of protection
against ingress of
moisture and
solid objects. The code consists of two firures.
The second figure indicats the protection against water: |
| Lamp current | 8,25A | ? The current of the lamp or ballast lamp in A (Ampère). |
| Length | 337mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Pieces per outer carton | 1 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Power factor | 0,9 | ? Power factor is the ratio between net power and apparent power. The PF is the value that indicates how efficiently electrical power is delivered to the consumer. Ideally, the PF is equal to 1. Anything below 1 means that additional power is required to deliver the desired power to the consumer. |
| Suitable for HPI-T | 1x1000W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Voltage | 230V | ? This may be either a fixed voltage or two values, in which case the product can be used within these limits. |
| Width | 236mm | ? Maximum width in millimetres. |
| EAN code | 8435110424187 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
| EAN code (extra) | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
compleet VSA met spoel, ontsteker AH 002D 0,8kV en condensator in metalen IP65 behuizing

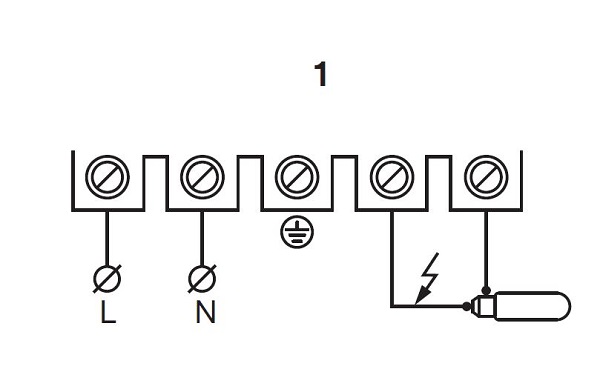

aansluitschema 1
Download PDF/ELT VHE Box manual 2019-09-17.pdf
