Tridonic 22085318 PCA 2/18 TCL Excel C one4all
| Manufacturer's article number | 22085318 | ? Manufacturer's part number. |
| Ballast version | Built-in ballast without strain relief |
?
Version of the ballast. |
| Brand | Tridonic | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Dimmable | Dali, Pushbutton, DSI | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |
| Dimming range | 3-100% | ? Not every dimmable ballast or light source can dim to 0% level, here is the dimming range. |

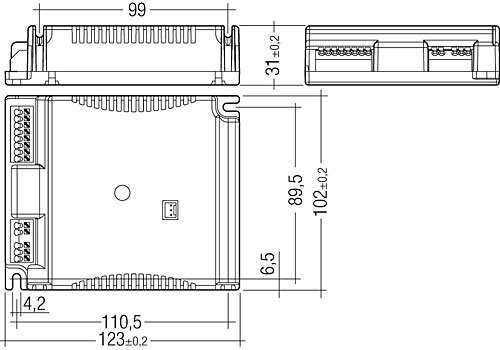

| Height | 31mm | ? Maximum height in millimetres. |
| IP protection degree | IP20 |
?
The IP (Ingress Protection) code indicates the degree of protection
against ingress of
moisture and
solid objects. The code consists of two firures.
The second figure indicats the protection against water: |
| Length | 123mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Pieces per outer carton | 1 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Start type | Warm start >5x switching a day |
?
Ballasts come in a cold and warm start. Cold start is slightly more energy efficient but has the disadvantage that it only up to 3x per day may change, otherwise it is defective. Warm start is today the most widely used. |
| Suitable for Dulux F 4p | 2x18W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for PL-L 4p | 2x18W |
?
Suitable for PL-L 4, L Dulux, Biax L, Lynx CF-L lamps. You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Temperature range | -25° to 60° C | ? If applied outside the specified temperature range, the components will not function properly. |
| Voltage | 198V-264V | ? This may be either a fixed voltage or two values, in which case the product can be used within these limits. |
| Width | 102mm | ? Maximum width in millimetres. |
Download productinformatieblad
