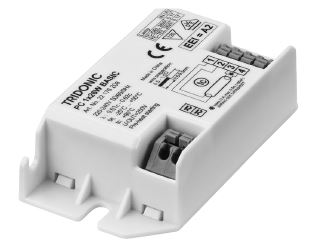

Tridonic 24138831 PC 1x4-13W basic
Properties
Downloads
Your corrections
| Manufacturer's article number | 24138831 | ? Manufacturer's part number. |
| Ballast | Electronic | ? A conventional ballast has a wound coil. It is somewhat cheaper to buy, but more expensive to run because more power is converted into heat. An electronic ballast not only has a lower power consumption, but it also has the advantage of longer lamp life. |
| Ballast version | Built-in ballast without strain relief |
?
Version of the ballast. |
| Brand | Tridonic | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Dimmable | No | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |
| Height | 21mm | ? Maximum height in millimetres. |
| Length | 80mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Pieces per outer carton | 1 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Shape | Rectangular | ? Product shape. |
| Start type | Warm start >5x switching a day |
?
Ballasts come in a cold and warm start. Cold start is slightly more energy efficient but has the disadvantage that it only up to 3x per day may change, otherwise it is defective. Warm start is today the most widely used. |
| Suitable for PL-C 4p | 1x10W |
?
Suitable for PL-C 4 Pin, Dulux D / E, Biax D / E, Lynx CF-DE lamps. You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for TL5 16mm | 1x4W, 1x6W, 1x8W, 1x13W |
?
Suitable for TL5 and TL5 HE HO, T5 FH and FQ T5, T5 and T5 FHE FHO, High Efficency T5 and T5 High Output lamps. You can only use lamps with the specified wattage and number. Other combinations will not work.
At the specified output has gone out of the standard length of the lamps. |
| Temperature range | -25° to 50° C | ? If applied outside the specified temperature range, the components will not function properly. |
| Voltage | 220V-240V | ? This may be either a fixed voltage or two values, in which case the product can be used within these limits. |
| Width | 40mm | ? Maximum width in millimetres. |
| EAN code | 9006210220642 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
| EAN code (extra) | 29103556 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
Tridonic 24138831 PC 1x4-13W basic
Download productinformatieblad
