ELT 3210191 AH 005/380-DP ontsteker parallel (2 draads) 1,2kV Ontsteker voor leidinglengte tot 100m voor metaal halogeenlampen HQI-T 2000W/N/SN en HPI-T 2000W 400V
Properties
Downloads
Your corrections
| Manufacturer's article number | 3210191 | ? Manufacturer's part number. |
| Brand | ELT | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Cable capacity output wires mutual | 10000pF |
?
Ballasts that include an ignitor to start the HID lamp are limited in the distance between ignitor / ballast and lamp. This capacity in pF may not be higher than the maximum value. A typical value for cable is 100pF/meter. |

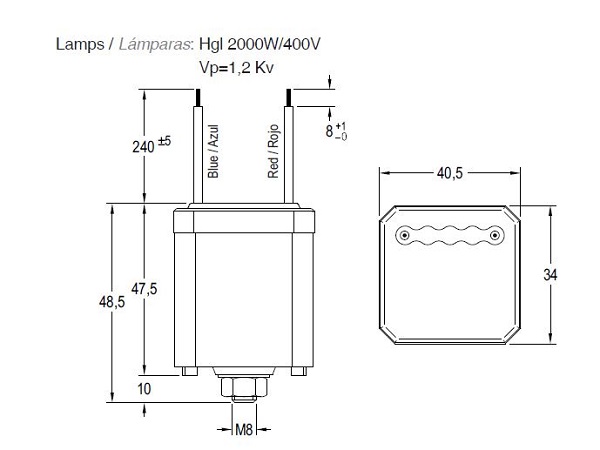

| Height | 34mm | ? Maximum height in millimetres. |
| Ignition voltage | 1,2kV | ? Ignition voltage of the ballast or lamp in kV. |
| Length | 47,5mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Pieces per outer carton | 25 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Width | 40,5mm | ? Maximum width in millimetres. |
| EAN code | 8435110480367 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
| EAN code (extra) | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
ELT 3210191 AH 005/380-DP ontsteker parallel (2 draads) 1,2kV
Ontsteker voor leidinglengte tot 100m voor metaal halogeenlampen HQI-T 2000W/N/SN en HPI-T 2000W 400V
Ontsteker voor leidinglengte tot 100m voor metaal halogeenlampen HQI-T 2000W/N/SN en HPI-T 2000W 400V
Download productinformatieblad
