ELT 3210241 AVS 2000/380 ontsteker 3 draads ontsteker voor metaal halogeenlampen o.a. MHN-SA 1800W 400V, MHN-SB 2000W, MHN-SA 2000W MHN-LA2000W/965 HPI-T 2000W 4000V 2000W HQI 2000W 400V ontsteekspanning 3,5-5,0kV
Properties
Downloads
Your corrections
| Manufacturer's article number | 3210241 | ? Manufacturer's part number. |
| Brand | ELT | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Cable capacity output wires mutual | 200pF |
?
Ballasts that include an ignitor to start the HID lamp are limited in the distance between ignitor / ballast and lamp. This capacity in pF may not be higher than the maximum value. A typical value for cable is 100pF/meter. |

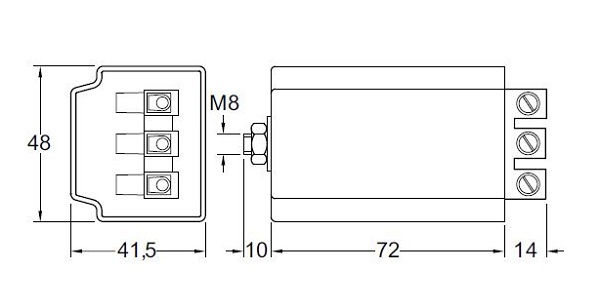

| Height | 41,5mm | ? Maximum height in millimetres. |
| Ignition voltage | 3,5-5,0kV | ? Ignition voltage of the ballast or lamp in kV. |
| Lamp current | 12A max. | ? The current of the lamp or ballast lamp in A (Ampère). |
| Length | 96mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Pieces per outer carton | 1 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Width | 48mm | ? Maximum width in millimetres. |
| EAN code | 8435110480060 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
| EAN code (extra) | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
ELT 3210241 AVS 2000/380 ontsteker 3 draads
ontsteker voor metaal halogeenlampen o.a. MHN-SA 1800W 400V, MHN-SB 2000W, MHN-SA 2000W MHN-LA2000W/965 HPI-T 2000W 4000V 2000W HQI 2000W 400V
ontsteekspanning 3,5-5,0kV
ontsteker voor metaal halogeenlampen o.a. MHN-SA 1800W 400V, MHN-SB 2000W, MHN-SA 2000W MHN-LA2000W/965 HPI-T 2000W 4000V 2000W HQI 2000W 400V
ontsteekspanning 3,5-5,0kV
Download PDF/29101619 manual.pdf
