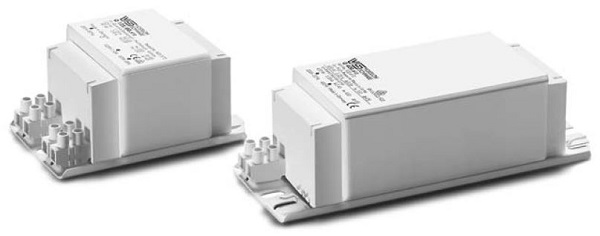

Vossloh Schwabe 570998 Q 400.613 vsa HPL-N 400 en HI metalhalogeen met losse ontsteker toepassen EXPORT 220V 60Hz toepassen met 25uF condensator
Properties
Downloads
Your corrections
| Manufacturer's article number | 508245 | ? Manufacturer's part number. |
| Ballast | Conventional | ? A conventional ballast has a wound coil. It is somewhat cheaper to buy, but more expensive to run because more power is converted into heat. An electronic ballast not only has a lower power consumption, but it also has the advantage of longer lamp life. |
| Ballast version | Coil |
?
Version of the ballast. |
| Brand | Vossloh Schwabe | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Dimmable | No | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |
| Height | 53mm | ? Maximum height in millimetres. |
| Lamp current | 3,25A | ? The current of the lamp or ballast lamp in A (Ampère). |
| Length | 180mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Pieces per outer carton | 4 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Suitable for HPL-N | 1x400W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Suitable for HQI | 1x400W | ? You can only use lamps with the specified wattage and number. Other combinations will not work. |
| Voltage | 220V | ? This may be either a fixed voltage or two values, in which case the product can be used within these limits. |
| Width | 69mm | ? Maximum width in millimetres. |
Vossloh Schwabe 570998 Q 400.613 vsa HPL-N 400 en HI metalhalogeen met losse ontsteker toepassen EXPORT 220V 60Hz
toepassen met 25uF condensator
toepassen met 25uF condensator
Download productinformatieblad
