ELT 9953070 eBLUE 0-10V, 1-10V, Dali en Bluetooth stuurmodule
Properties
Downloads
Your corrections
| Manufacturer's article number | 9953070 | ? Manufacturer's part number. |
| Brand | ELT | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Colour | White | ? Most common colour in the product. |

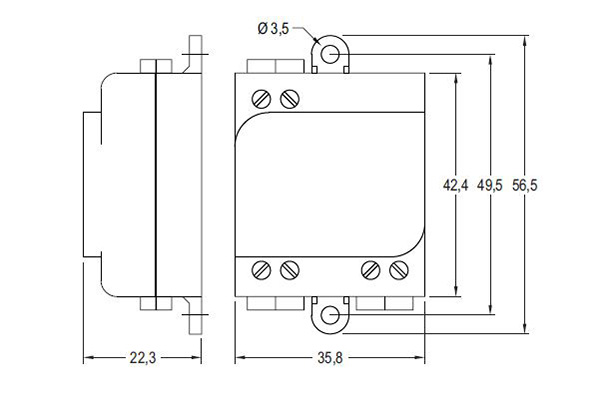

| Height | 22,3mm | ? Maximum height in millimetres. |
| Length | 42,4mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Maximum wattage | 440W | ? Maximum amount of power, expressed in watts, that can be connected to the transformer in order to work properly. If the assets exceed this maximum amount, the transformer may behave abnormally: known phenomena in electronic transformers are the lights switching on and off, and no output voltage. |
| Minimum wattage | 1W |
?
The minimum power must be connected to the transformer to work properly. If the assets are below the transformer behave abnormally. Known phenomena are electronic transformers are flashing lights, brighter and fainter burning lamps and no output voltage. A conventional wound transformer must be at least 75% of the maximum power charge. If the load is below this limit, the output voltage too high making the lamps extremely much shorter life. The color of the lamps is usually very white. |
| Pieces per outer carton | 1 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Shape | Square | ? Product shape. |
| Width | 35,8mm | ? Maximum width in millimetres. |
| EAN code | 8435110494524 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
| EAN code (extra) | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
ELT 9953070 eBLUE 0-10V, 1-10V, Dali en Bluetooth stuurmodule
Download PDF/ELT eBLUE 9953070 manual.pdf
