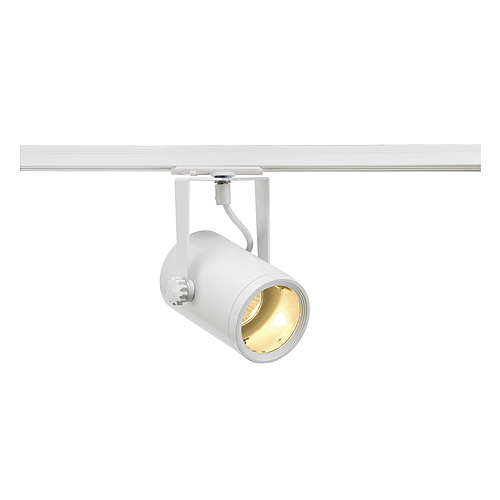

SLV 143811 Euro Spot GU10 ES50 25W 1 fase rail armatuur wit
| Manufacturer's article number | 143811 | ? Manufacturer's part number. |
| Appliance class | Class I (earthed) |
?
In the electrical appliance manufacturing industry, the following IEC protection classes are used to differentiate between the protective-earth connection requirements of devices. Class I These appliances must have their chassis connected to electrical earth (ground). This earth conductor is coloured green/yellow in most countries (green in US, Canada and Japan)
Class II These appliances are double insulated. It has been designed is such a way that is does not require a safety connection to electrical earth (ground)
Class III These appliances are designed to be supplied from a separated/safety extra-low voltage (SELV) power source maximum 50V (Volt) AC alternating current. The voltage from a SELV supply is low enough that under normal conditions a person can safely come into contact with it without risk of electrical shock.
|
| Base version | 1 phase SLV Lupa adapter |
?
The foot may have been different versions. The 1 circuit track adapter is brand specific. The 3 phase track adapter is universal and applicable to most brands rail. |
| Big White 2020 page no. | 392 |
?
Page number in SLV Big White catalogue 2020. |
| Big White 2021 page no. | 516 |
?
Page number in SLV Big White catalogue 2021. |
| Big White 2022 page no. | 485 |
?
Page number in SLV Big White catalogue 2022. |
| Big White 2023 page no. | 521 |
?
Page number in SLV Big White catalogue 2024. |
| Big White 2025 page no. | 0598 |
?
Page number in SLV Big White catalogue 2025. |
| Big White 2026 page no. | 0580 |
|
| Brand | SLV | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Colour | White | ? Most common colour in the product. |
| Dimmable | Yes | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |

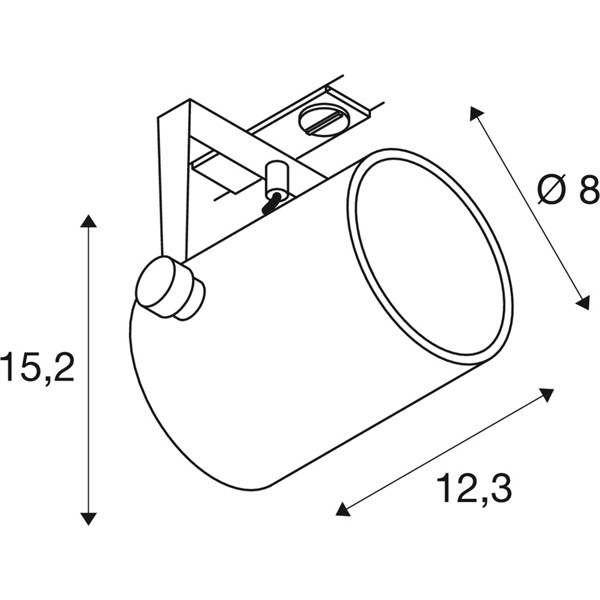

| Height | 160mm | ? Maximum height in millimetres. |
| Lamp base | GU10 | ? Cap, lamp holder or lamp base type. |
| Lamp included | No | ? Luminaire including or excluding lamp(s). |
| Length | 125mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Light source | ES50 | ? Type of lamp that fits in the luminaire. In some cases, several types of lamps can be used in one luminaire. |
| Luminaire application | Indoor | ? Application of the luminaire depending on the environment. For example, an indoor fitting cannot be used outdoors. An outdoor luminaire, on the other hand, could be used indoors, but may be less suitable here, fore example because it provides too much light or is aesthetically unsuitable. |
| Luminaire type | Track 230V 1 Phase SLV Lupa | ? Type of luminaire application. |
| Material | Aluminium | ? Material of which the major part of the product is made. |
| Old article number | 312882 | ? Old part number of the manufacturere. By renumbering, each SLV article has a new Europian part number. |
| Outside measurements | Ø80mm | ? Outside Dimension is the largest size, often of the lamp head. |
| Pieces per outer carton | 1 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Suitable for number of lamps | 1 | ? The number of lights that the luminaire can contain. Most luminaires are supplied without lamps. If lamps are included can be found in filter property Lamp included. |
| Tilt angle | 90° | ? The number of degrees that the fixture can be tilted vertically. |
| Turning angle | 350° | ? The number of degrees the fixture can rotate in a horizontal direction. |
| Voltage | 230V | ? This may be either a fixed voltage or two values, in which case the product can be used within these limits. |
| Wattage | 25W | ? The power that the bulb consumes. This does not include the loss of any ballast or transformer. |
| Width | 152mm | ? Maximum width in millimetres. |
| EAN code | 4024163128827 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
| EAN code (extra) | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
Download productinformatieblad
