HBI serie 200 Polaris II 2L0500CC opbouwarmatuur LED 5W lichtsensor IP65 met corridor lenzen 80lm (low level) 1,3W 425lm (high level) 7W
| Manufacturer's article number | 2L0500CC | ? Manufacturer's part number. |
| Average life span | 100000h | ? The life span of a party of lamps of which 50% of the lamps will continue to function. Sometimes, incandescent or halogen lamps may become defective more quickly, but in case 50% of the lamps do still reach the lifespan, the lamps are still OK. |
| Brand | HBI | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Built-in motion detector | No |
?
Luminaire or lamp has a built-in motion detector. The light will switch on when a movement is detected. |
| Built-in twilight switch | Yes |
?
Luminaire or lamp has a twilight switch function. This automatically switches on the lights as it gets dark. |
| Colour | Grey | ? Most common colour in the product. |
| Colour rendering index Ra | >80 |
?
Light sources can be classified on the basis of their colour rendering properties. The unit for colour rendering is called CRI (Colour Rendering Index, or CRI Ra value). The scale of the Ra is from 50 to 100. Ra = 90-100 excellent colour rendering properties Ra = 80-90 good colour rendering properties Ra = 60-80 moderate colour rendering properties Ra <60 poor colour rendering properties Fluorescent and PL lamps with an equal power, the luminous flux of Ra 90-100 tubes is typically 20% lower. |
| Colour temperature | 4000K |
?
Colour temperature is expressed in kelvin (K). The higher the colour temperature, the cooler the impression of the light: 2700K: extra warm white
Extra warm white creates a warm, inviting atmosphere (e.g. hotel, living room, and catering). Warm white can be used for a pleasant atmosphere (e.g. retail and office). Neutral cool white creates a more businesslike atmosphere, this color gives a sterile atmosphere.
|
| Dimmable | No | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |
| Emergency power | No | ? If a luminaire has an emergency function, the autonomy time is indicated here. |

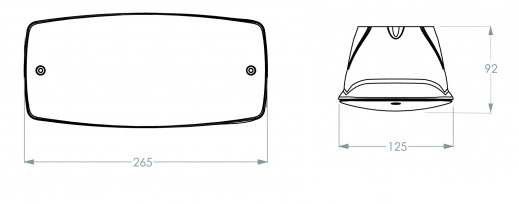

| Height | 99mm | ? Maximum height in millimetres. |
| IP protection degree | IP65 |
?
The IP (Ingress Protection) code indicates the degree of protection
against ingress of
moisture and
solid objects. The code consists of two firures.
The second figure indicats the protection against water: |
| Lamp included | Yes | ? Luminaire including or excluding lamp(s). |
| Length | 265mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Light source | LED | ? Type of lamp that fits in the luminaire. In some cases, several types of lamps can be used in one luminaire. |
| Luminaire application | Indoor | ? Application of the luminaire depending on the environment. For example, an indoor fitting cannot be used outdoors. An outdoor luminaire, on the other hand, could be used indoors, but may be less suitable here, fore example because it provides too much light or is aesthetically unsuitable. |
| Luminaire type | Ceiling surface mounted | ? Type of luminaire application. |
| Luminous flux | 425lm | ? The amount of light transmitted by the light source per second. The unit of luminous flux is the lumen (lm). |
| Material | PC (Polycarbonaat) | ? Material of which the major part of the product is made. |
| Pieces per outer carton | 1 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Power factor | 0,9 | ? Power factor is the ratio between net power and apparent power. The PF is the value that indicates how efficiently electrical power is delivered to the consumer. Ideally, the PF is equal to 1. Anything below 1 means that additional power is required to deliver the desired power to the consumer. |
| Reflector version | Corridor lense for corridors | ? The type of reflector which is in the armature located. For TL-D luminaires matt the most applied, dirt on the reflector is not or hardly seen. For T5 fixtures is a high gloss reflector optical much nicer, the luminaire is less seen. In the LTS fittings with SDW-T or SDW-TG lamps for the bakery in the past is often used a gold reflector for a warmer color. For expansion with existing fixtures would be an option. We prefer a silver reflector with possibly a bakery filter because much less distortion of the color displays compared to a gold reflector. |
| Voltage | 230V | ? This may be either a fixed voltage or two values, in which case the product can be used within these limits. |
| Wattage | 7W | ? The power that the bulb consumes. This does not include the loss of any ballast or transformer. |
| Width | 148mm | ? Maximum width in millimetres. |
| EAN code | 8718309385316 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
| EAN code (extra) | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
worden toegepast voor gangen en galerijen, op 2,70m hoogte een verlicht vlak van 2m bij 8m
80lm (low level) 1,3W 425lm (high level) 7W
Download productinformatieblad
