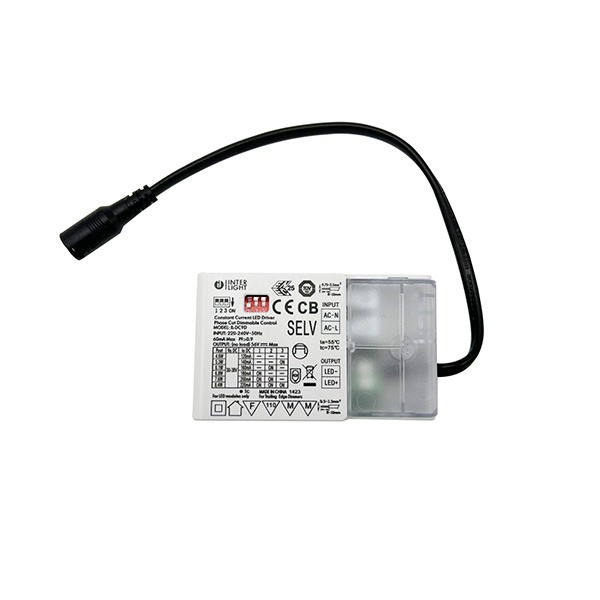

Interlight IL-DC9D Camita LED driver 120-220mA dimbaar 230V nieuw model
| Manufacturer's article number | IL-DC9D | ? Manufacturer's part number. |
| Ballast | LED Converter | ? A conventional ballast has a wound coil. It is somewhat cheaper to buy, but more expensive to run because more power is converted into heat. An electronic ballast not only has a lower power consumption, but it also has the advantage of longer lamp life. |
| Ballast version | Surface-mounted with strain relief |
?
Version of the ballast. |
| Brand | Interlight | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Connection output | 1 x cord 0,2m |
?
Connection type of the output. |
| Dimmable | Yes | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |
| Height | 30mm | ? Maximum height in millimetres. |
| Input voltage | 230V |
?
This may be a fixed voltage or two values with a hyphen. You can use the product within these limits. |
| IP protection degree | IP20 |
?
The IP (Ingress Protection) code indicates the degree of protection
against ingress of
moisture and
solid objects. The code consists of two firures.
The second figure indicats the protection against water: |
| Length | 86mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Ouput current | 120mA, 140mA, 160mA, 180mA, 200mA, 220mA | ? Each type of LED requires a different driver. Current-controlled LEDs of 350, 700, 1050 and 1400mA need to be connected in series. This can be easily done with an LED distributor. Unused outputs are shorted with a wire . First connect the wires, then you can put power on! Never disconnect wires under power! |
| Pieces per outer carton | 1 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Power factor | >0,9 | ? Power factor is the ratio between net power and apparent power. The PF is the value that indicates how efficiently electrical power is delivered to the consumer. Ideally, the PF is equal to 1. Anything below 1 means that additional power is required to deliver the desired power to the consumer. |
| Shape | Rectangular | ? Product shape. |
| Width | 52mm | ? Maximum width in millimetres. |
| EAN code | 8717438667188 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
| EAN code (extra) | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |

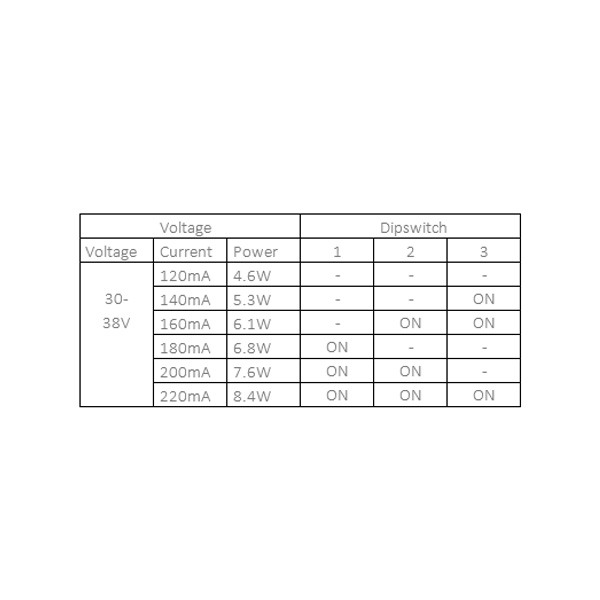

multifunctionele LED driver met dipswich instelbaar 120mA 3,6-4,6W, 140mA 4,2-5,3W, 160mA 4,8-6,1W, 180mA 5,4W-6,8W, 200mA 6-7,6W, 220mA 6,6-8,4W
Download productinformatieblad
