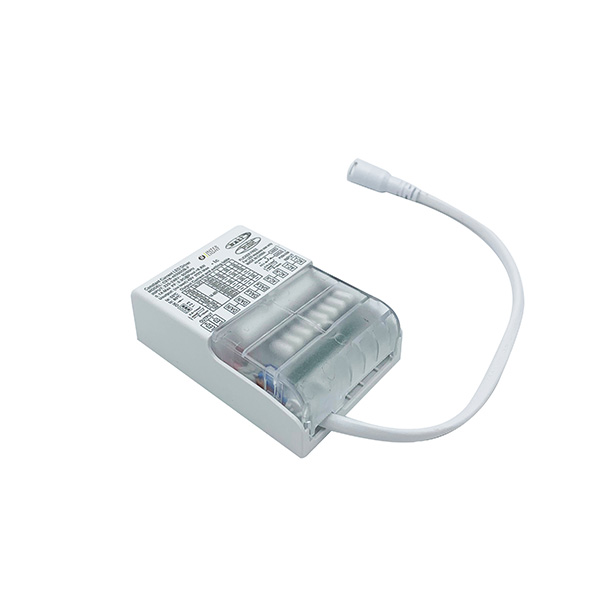

Interlight IL-D14DALI2L LED driver 120-350mA Dali dimbaar instelbaar d.m.v. dipswitches 120mA 1,7-4,8W, 160mA 2,3-6,4W, 180mA 2,5-7,2W, 220mA 3,1-8,8W, 250mA 3,5-10W, 280mA 3,9-11,2W, 350mA 4,9-14W
| Manufacturer's article number | IL-D14DALI2L | ? Manufacturer's part number. |
| Ballast | LED Converter | ? A conventional ballast has a wound coil. It is somewhat cheaper to buy, but more expensive to run because more power is converted into heat. An electronic ballast not only has a lower power consumption, but it also has the advantage of longer lamp life. |
| Ballast version | Surface-mounted with strain relief |
?
Version of the ballast. |
| Brand | Interlight | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Colour | White | ? Most common colour in the product. |
| Connection output | 1 x cord 0,18m |
?
Connection type of the output. |
| Connection power input | 1 x springclamp |
?
The way the power can be connected. |
| Connection power output | 1 x springclamp | ? The way the power can be tapped for looping through. |
| Dimmable | Dali, Pushbutton, Dali 2 | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |
| Height | 27,5mm | ? Maximum height in millimetres. |
| Input voltage | 230V |
?
This may be a fixed voltage or two values with a hyphen. You can use the product within these limits. |
| IP protection degree | IP20 |
?
The IP (Ingress Protection) code indicates the degree of protection
against ingress of
moisture and
solid objects. The code consists of two firures.
The second figure indicats the protection against water: |
| Length | 87,5mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Ouput current | 120mA, 160mA, 180mA, 220mA, 250mA, 280mA, 350mA | ? Each type of LED requires a different driver. Current-controlled LEDs of 350, 700, 1050 and 1400mA need to be connected in series. This can be easily done with an LED distributor. Unused outputs are shorted with a wire . First connect the wires, then you can put power on! Never disconnect wires under power! |
| Pieces per outer carton | 1 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Shape | Rectangular | ? Product shape. |
| Width | 60mm | ? Maximum width in millimetres. |
| EAN code | 8719214379315 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
| EAN code (extra) | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |

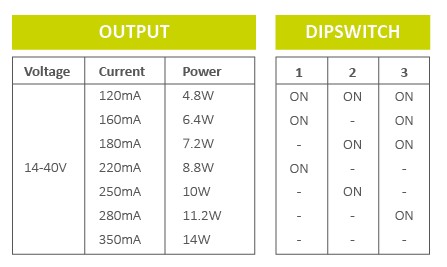

instelbaar d.m.v. dipswitches 120mA 1,7-4,8W, 160mA 2,3-6,4W, 180mA 2,5-7,2W, 220mA 3,1-8,8W, 250mA 3,5-10W, 280mA 3,9-11,2W, 350mA 4,9-14W
Download productinformatieblad
