Arditi 040477 ALED-DIM AV 18 SP LED driver 200-950mA 12V + 24V DC stekkermodel dimbaar met drukknop zonder stekkerplug, zie accessoires
Properties
Accessories
Downloads
Your corrections
| Manufacturer's article number | 040477 | ? Manufacturer's part number. |
| Ballast | LED Converter | ? A conventional ballast has a wound coil. It is somewhat cheaper to buy, but more expensive to run because more power is converted into heat. An electronic ballast not only has a lower power consumption, but it also has the advantage of longer lamp life. |
| Ballast version | Stekkermodel |
?
Version of the ballast. |
| Brand | Arditi | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Colour | Black | ? Most common colour in the product. |
| Connection output | 1 x springclamp |
?
Connection type of the output. |
| Connection power input | Special |
?
The way the power can be connected. |
| Connection power output | No | ? The way the power can be tapped for looping through. |
| Dimmable | Pushbutton | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |
| Height | 42mm | ? Maximum height in millimetres. |
| Input voltage | 110V-240V |
?
This may be a fixed voltage or two values with a hyphen. You can use the product within these limits. |
| Length | 122mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Ouput current | 200mA, 250mA, 300mA, 350mA, 400mA, 450mA, 500mA, 550mA, 600mA, 650mA, 700mA, 750mA, 800mA, 850mA, 900mA, 950mA | ? Each type of LED requires a different driver. Current-controlled LEDs of 350, 700, 1050 and 1400mA need to be connected in series. This can be easily done with an LED distributor. Unused outputs are shorted with a wire . First connect the wires, then you can put power on! Never disconnect wires under power! |
| Output voltage | 12V or 24V DC (direct current) | ? The output voltage is indicated here. Voltage-controlled LEDs must always be connected in parallel. |
| Pieces per outer carton | 1 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Power factor | 0,95 | ? Power factor is the ratio between net power and apparent power. The PF is the value that indicates how efficiently electrical power is delivered to the consumer. Ideally, the PF is equal to 1. Anything below 1 means that additional power is required to deliver the desired power to the consumer. |
| Shape | Rectangular | ? Product shape. |
| Width | 59mm | ? Maximum width in millimetres. |
Arditi 040477 ALED-DIM AV 18 SP LED driver mutlifunctioneel 200-950mA 12V + 24V DC stekkermodel dimbaar met drukknop
dmv dipswitch intern instelbaar voor verschillende spanningen en stromen. LED stroomsturing 200mA 9,6W, 250mA 12W, 300mA 14,4W, 350mA 16,8W, 400mA 18W, 450mA 17,6W, 500mA 18W, 550mA 16,5W, 600mA 18W, 650mA 17,6W, 700mA 18,6W, 750mA 18W, 800mA 16,8W, 850mA 17,9W, 900mA 16,2W, 950mA 17,1W
LED spanningsturing 12V DC 11,4W, 24V DC 18W

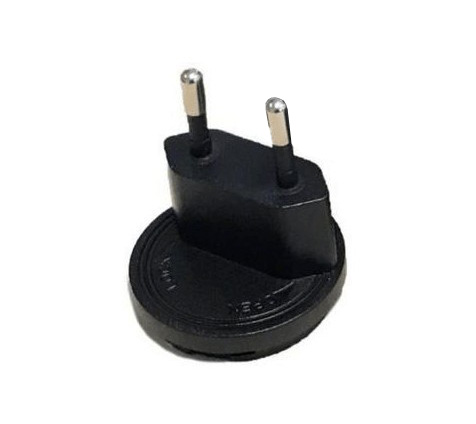

zonder stekkerplug, zie accessoires
dmv dipswitch intern instelbaar voor verschillende spanningen en stromen. LED stroomsturing 200mA 9,6W, 250mA 12W, 300mA 14,4W, 350mA 16,8W, 400mA 18W, 450mA 17,6W, 500mA 18W, 550mA 16,5W, 600mA 18W, 650mA 17,6W, 700mA 18,6W, 750mA 18W, 800mA 16,8W, 850mA 17,9W, 900mA 16,2W, 950mA 17,1W
LED spanningsturing 12V DC 11,4W, 24V DC 18W
zonder stekkerplug, zie accessoires
Download productinformatieblad
