Tridonic 28000701 LEDdriver LC 45W 500-1400mA flexC SR EXC opbouw met trekontlasting uitgangsstroom tussen 500 en 1400mA instelbaar met ready2mains programmer of I-select 2 weerstanden zonder weerstand is de uitgangsstroom ingesteld op 500mA
| Manufacturer's article number | 28000701 | ? Manufacturer's part number. |
| Ballast | LED Converter | ? A conventional ballast has a wound coil. It is somewhat cheaper to buy, but more expensive to run because more power is converted into heat. An electronic ballast not only has a lower power consumption, but it also has the advantage of longer lamp life. |
| Ballast version | Surface-mounted with strain relief |
?
Version of the ballast. |
| Brand | Tridonic | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Dimmable | No | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |

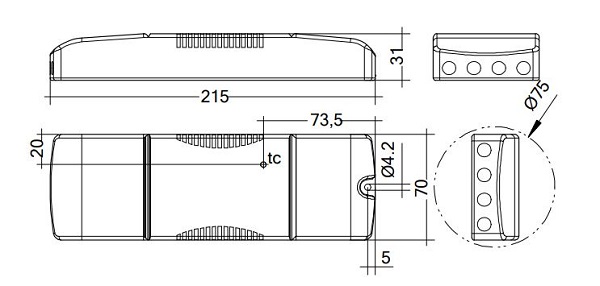

| Height | 31mm | ? Maximum height in millimetres. |
| Input voltage | 220V-240V |
?
This may be a fixed voltage or two values with a hyphen. You can use the product within these limits. |
| IP protection degree | IP20 |
?
The IP (Ingress Protection) code indicates the degree of protection
against ingress of
moisture and
solid objects. The code consists of two firures.
The second figure indicats the protection against water: |
| Length | 215mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Maximum wattage | 45W | ? Maximum amount of power, expressed in watts, that can be connected to the transformer in order to work properly. If the assets exceed this maximum amount, the transformer may behave abnormally: known phenomena in electronic transformers are the lights switching on and off, and no output voltage. |
| Ouput current | 500mA, 550mA, 600mA, 650mA, 700mA, 750mA, 800mA, 850mA, 900mA, 950mA, 1000mA, 1050mA, 1100mA, 1150mA, 1200mA, 1250mA, 1300mA, 1350mA, 1400mA | ? Each type of LED requires a different driver. Current-controlled LEDs of 350, 700, 1050 and 1400mA need to be connected in series. This can be easily done with an LED distributor. Unused outputs are shorted with a wire . First connect the wires, then you can put power on! Never disconnect wires under power! |
| Pieces per outer carton | 10 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Width | 70mm | ? Maximum width in millimetres. |
| EAN code | 9006210000008 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
| EAN code (extra) | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
uitgangsstroom tussen 500 en 1400mA instelbaar met ready2mains programmer of I-select 2 weerstanden 500mA 10-27W, 550mA 11-29,7W, 600mA 12-32,4W, 650mA 13-35,1W, 700mA 14-37,8W, 750mA 15-40,5W, 800mA 16-43,2W, 850mA 17-45W, 900mA 18-45W, 950mA 19-45W, 1000mA 20-45W, 1050mA 21-45W, 1100mA 22-45W, 1150mA 23-45W, 1200mA 24-45W, 1250mA 25-45W, 1300mA 26-45W, 1350mA 27-45W en 1400mA 28-45W
zonder weerstand is de uitgangsstroom ingesteld op 500mA
Download PDF/29101936 manual.pdf
