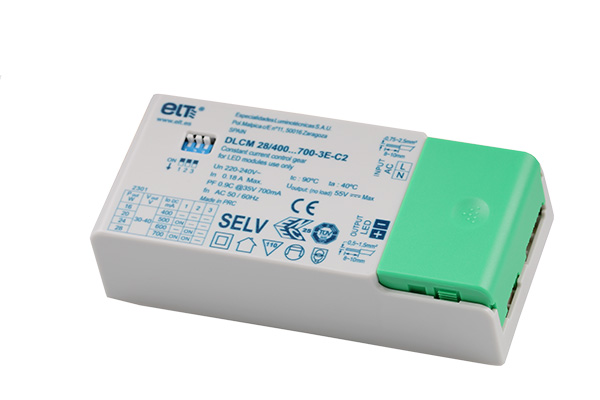

ELT 9907192 DLCM 28/400...700-2B-C2 LEDdriver 400 t/m 700mA dimbaar opbouw met trekontlasting instelbaar d.m.v. dipswitches 400mA 12-16W, 500mA 15-20W, 600mA 18-24W, 700mA 18-24W
Properties
Downloads
Your corrections
| Manufacturer's article number | 9907192 | ? Manufacturer's part number. |
| Ballast | LED Converter | ? A conventional ballast has a wound coil. It is somewhat cheaper to buy, but more expensive to run because more power is converted into heat. An electronic ballast not only has a lower power consumption, but it also has the advantage of longer lamp life. |
| Ballast version | Surface-mounted with strain relief |
?
Version of the ballast. |
| Brand | ELT | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Connection output | 1 x springclamp |
?
Connection type of the output. |
| Connection power input | 1 x springclamp |
?
The way the power can be connected. |
| Connection power output | No | ? The way the power can be tapped for looping through. |
| Dimmable | Yes, L dimmer (Conventional transformer), C dimmer (Tronic electronic transformer) | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |
| Height | 29,5mm | ? Maximum height in millimetres. |
| Input voltage | 220V-240V |
?
This may be a fixed voltage or two values with a hyphen. You can use the product within these limits. |
| Length | 115mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Ouput current | 400mA, 500mA, 600mA, 700mA | ? Each type of LED requires a different driver. Current-controlled LEDs of 350, 700, 1050 and 1400mA need to be connected in series. This can be easily done with an LED distributor. Unused outputs are shorted with a wire . First connect the wires, then you can put power on! Never disconnect wires under power! |
| Pieces per outer carton | 25 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Shape | Rectangular | ? Product shape. |
| Width | 53mm | ? Maximum width in millimetres. |
| EAN code | 8435110522869 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
| EAN code (extra) | 29103016 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
ELT 9907192 DLCM 28/400...700-2B-C2 LEDdriver 400 t/m 700mA dimbaar opbouw met trekontlasting
instelbaar d.m.v. dipswitches 400mA 12-16W, 500mA 15-20W, 600mA 18-24W, 700mA 18-24W
instelbaar d.m.v. dipswitches 400mA 12-16W, 500mA 15-20W, 600mA 18-24W, 700mA 18-24W
