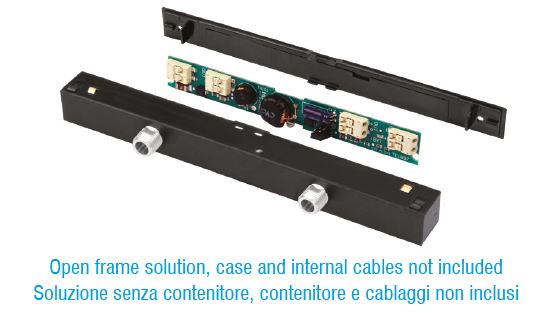

TCI 126046 OF LV HR Track 2L 1-10V 357 OF 350-700mA LED driver voor 48V DC print zonder behuizing dmv dipswitch intern instelbaar voor verschillende stromen. LED stroomsturing 350mA 1,1-13W, 500mA 1,5-20W, 550mA 1,7-22W, 700mA 2,1-28W Geschikt voor Stucchi serie 9500 48V rail adaptor, 2 uitgangen voor 2 LED's
Properties
Downloads
Your corrections
| Manufacturer's article number | 126046 OF | ? Manufacturer's part number. |
| Ballast | LED Converter | ? A conventional ballast has a wound coil. It is somewhat cheaper to buy, but more expensive to run because more power is converted into heat. An electronic ballast not only has a lower power consumption, but it also has the advantage of longer lamp life. |
| Ballast version | Built-in ballast without strain relief |
?
Version of the ballast. |
| Brand | TCI | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Dim type | AM+PWM (mixed) | ? Dim type: AM, PWM or hybrid. |
| Dimmable | 1-10V, Potentiometer, 0-10V | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |
| Height | 8mm | ? Maximum height in millimetres. |
| Input voltage | 48V DC (direct current) |
?
This may be a fixed voltage or two values with a hyphen. You can use the product within these limits. |
| Length | 125mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Ouput current | 350mA, 500mA, 550mA, 700mA | ? Each type of LED requires a different driver. Current-controlled LEDs of 350, 700, 1050 and 1400mA need to be connected in series. This can be easily done with an LED distributor. Unused outputs are shorted with a wire . First connect the wires, then you can put power on! Never disconnect wires under power! |
| Pieces per outer carton | 1 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Shape | Oblong | ? Product shape. |
| Width | 14,5mm | ? Maximum width in millimetres. |
| EAN code | 8010703343030 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
| EAN code (extra) | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
TCI 126046 OF LV HR Track 2L 1-10V 357 OF 350-700mA LED driver voor 48V DC print zonder behuizing
dmv dipswitch intern instelbaar voor verschillende stromen. LED stroomsturing 350mA 1,1-13W, 500mA 1,5-20W, 550mA 1,7-22W, 700mA 2,1-28W
Geschikt voor Stucchi serie 9500 48V rail adaptor, 2 uitgangen voor 2 LED's
dmv dipswitch intern instelbaar voor verschillende stromen. LED stroomsturing 350mA 1,1-13W, 500mA 1,5-20W, 550mA 1,7-22W, 700mA 2,1-28W
Geschikt voor Stucchi serie 9500 48V rail adaptor, 2 uitgangen voor 2 LED's
Download PDF/29101064 manual.pdf
