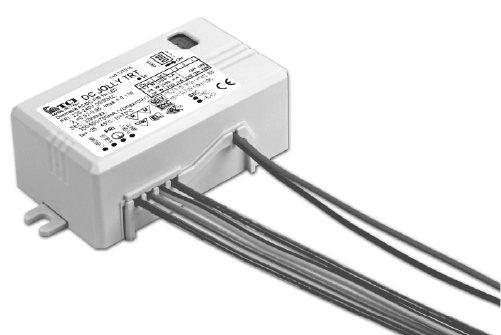

TCI 127016 Jolly TRT 32 - Push multifunctionele LEDdriver 350-700mA dimbaar met drukknop dmv dipswitch intern instelbaar voor verschillende stromen. LED stroomsturing 350mA 7-17W, 400mA 8-20W, 450mA 9-22W, 500mA 5-24W, 550mA 5,5-26W, 600mA 1,2-28W, 650mA 1,3-30W, 700mA 1,4-32W
Properties
Downloads
Your corrections
| Manufacturer's article number | 127016 | ? Manufacturer's part number. |
| Ballast | LED Converter | ? A conventional ballast has a wound coil. It is somewhat cheaper to buy, but more expensive to run because more power is converted into heat. An electronic ballast not only has a lower power consumption, but it also has the advantage of longer lamp life. |
| Ballast version | Pre-assembled with wiring |
?
Version of the ballast. |
| Brand | TCI | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Dimmable | Pushbutton | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |
| Height | 27mm | ? Maximum height in millimetres. |
| Input voltage | 220V-240V |
?
This may be a fixed voltage or two values with a hyphen. You can use the product within these limits. |
| Length | 85mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Ouput current | 350mA, 400mA, 450mA, 500mA, 550mA, 600mA, 650mA, 700mA | ? Each type of LED requires a different driver. Current-controlled LEDs of 350, 700, 1050 and 1400mA need to be connected in series. This can be easily done with an LED distributor. Unused outputs are shorted with a wire . First connect the wires, then you can put power on! Never disconnect wires under power! |
| Pieces per outer carton | 35 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Shape | Other | ? Product shape. |
| Width | 40mm | ? Maximum width in millimetres. |
| EAN code | 8010703320352 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
| EAN code (extra) | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
TCI 127016 Jolly TRT 32 - Push multifunctionele LEDdriver 350-700mA dimbaar met drukknop
dmv dipswitch intern instelbaar voor verschillende stromen. LED stroomsturing 350mA 7-17W, 400mA 8-20W, 450mA 9-22W, 500mA 5-24W, 550mA 5,5-26W, 600mA 1,2-28W, 650mA 1,3-30W, 700mA 1,4-32W
dmv dipswitch intern instelbaar voor verschillende stromen. LED stroomsturing 350mA 7-17W, 400mA 8-20W, 450mA 9-22W, 500mA 5-24W, 550mA 5,5-26W, 600mA 1,2-28W, 650mA 1,3-30W, 700mA 1,4-32W
Download PDF/29100537 manual.pdf
