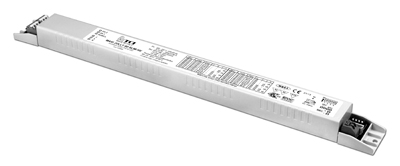

TCI 127082 T-LED 80/700 1-10V slim LEDdriver 350-700mA 80W
Properties
Downloads
Your corrections
| Manufacturer's article number | 127082 | ? Manufacturer's part number. |
| Ballast | LED Converter | ? A conventional ballast has a wound coil. It is somewhat cheaper to buy, but more expensive to run because more power is converted into heat. An electronic ballast not only has a lower power consumption, but it also has the advantage of longer lamp life. |
| Ballast version | Built-in ballast without strain relief |
?
Version of the ballast. |
| Brand | TCI | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Colour | White | ? Most common colour in the product. |
| Dimmable | 1-10V, Pushbutton | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |
| Height | 21mm | ? Maximum height in millimetres. |
| Input voltage | 220V-240V |
?
This may be a fixed voltage or two values with a hyphen. You can use the product within these limits. |
| Length | 360mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Ouput current | 350mA, 375mA, 400mA, 425mA, 450mA, 475mA, 500mA, 525mA, 550mA, 575mA, 600mA, 625mA, 650mA, 675mA, 700mA | ? Each type of LED requires a different driver. Current-controlled LEDs of 350, 700, 1050 and 1400mA need to be connected in series. This can be easily done with an LED distributor. Unused outputs are shorted with a wire . First connect the wires, then you can put power on! Never disconnect wires under power! |
| Pieces per outer carton | 1 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Shape | Oblong | ? Product shape. |
| Width | 30mm | ? Maximum width in millimetres. |
| EAN code | 8010703311268 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
| EAN code (extra) | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
TCI 127082 T-LED 80/700 1-10V slim LEDdriver 350-700mA 80W
dmv dipswitch intern instelbaar voor verschillende stromen. LED stroomsturing 350mA 10,5-42W, 375mA 11,3-45W, 400mA 12-48W, 425mA 12,8-51W, 450mA 13,5-54W, 475mA 14,3W 57W, 500mA 15-60W, 525mA 15,8-63W, 550mA 16,5-66W, 575mA 17,3-69W, 600mA 18-72W, 625mA 18,8-75W, 650mA 19,5-78W, 675mA 20,3-80W, 700mA 21-80W
dmv dipswitch intern instelbaar voor verschillende stromen. LED stroomsturing 350mA 10,5-42W, 375mA 11,3-45W, 400mA 12-48W, 425mA 12,8-51W, 450mA 13,5-54W, 475mA 14,3W 57W, 500mA 15-60W, 525mA 15,8-63W, 550mA 16,5-66W, 575mA 17,3-69W, 600mA 18-72W, 625mA 18,8-75W, 650mA 19,5-78W, 675mA 20,3-80W, 700mA 21-80W
Download PDF/29101849 manual.pdf
