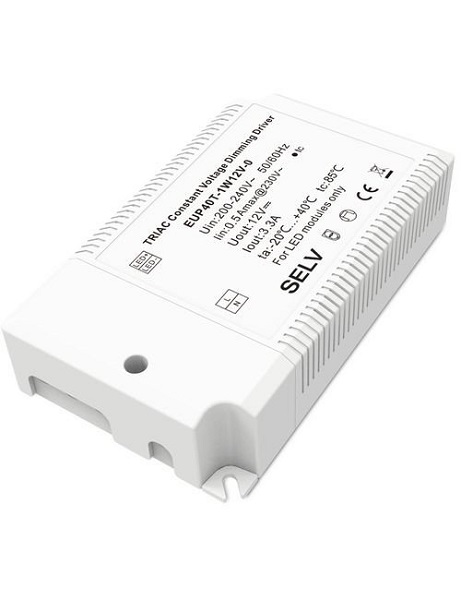

SPL 605100502 LED voeding 12V DC 40W dimbaar
| Manufacturer's article number | 605100502 | ? Manufacturer's part number. |
| Ballast | LED Converter | ? A conventional ballast has a wound coil. It is somewhat cheaper to buy, but more expensive to run because more power is converted into heat. An electronic ballast not only has a lower power consumption, but it also has the advantage of longer lamp life. |
| Ballast version | Surface-mounted with strain relief |
?
Version of the ballast. |
| Brand | SPL | ? If the product is unbranded, we do not have a regular supplier for it. Therefore, the product version may slightly vary. |
| Connection output | 1 x springclamp |
?
Connection type of the output. |
| Connection power input | 1 x springclamp |
?
The way the power can be connected. |
| Connection power output | No | ? The way the power can be tapped for looping through. |
| Dimmable | Yes, L dimmer (Conventional transformer), C dimmer (Tronic electronic transformer) | ? Some lamps and ballasts are dimmable. There are different types of dimmers and different ways to dim a ballast or transformer. In case of insufficient knowledge, please check with our sales department. |
| Height | 31mm | ? Maximum height in millimetres. |
| Input voltage | 200V-240V |
?
This may be a fixed voltage or two values with a hyphen. You can use the product within these limits. |
| IP protection degree | IP20 |
?
The IP (Ingress Protection) code indicates the degree of protection
against ingress of
moisture and
solid objects. The code consists of two firures.
The second figure indicats the protection against water: |
| Length | 137mm |
?
Product length in millimetres. For fluorescent tubes, this excludes the metal pins on the end unless otherwise stated. |
| Maximum wattage | 40W | ? Maximum amount of power, expressed in watts, that can be connected to the transformer in order to work properly. If the assets exceed this maximum amount, the transformer may behave abnormally: known phenomena in electronic transformers are the lights switching on and off, and no output voltage. |
| Output voltage | 12V DC (direct current) | ? The output voltage is indicated here. Voltage-controlled LEDs must always be connected in parallel. |
| Pieces per outer carton | 1 | ? Number of pieces per outer carton. To order full boxes of the item, please add it to your shopping basket in multiples of this amount. |
| Width | 82mm | ? Maximum width in millimetres. |
| EAN code | 8718739076341 | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
| EAN code (extra) | ? EAN code is the barcode of an article which is used worldwide as article code. The EAN code extra is the code from the extra packing. |
Download productinformatieblad
